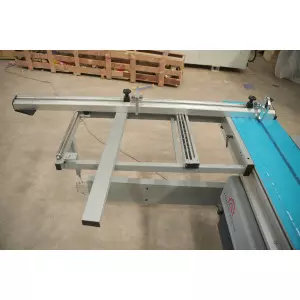

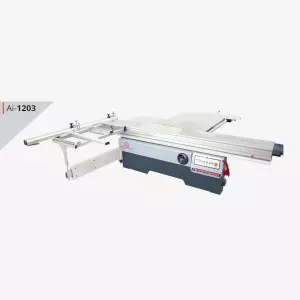

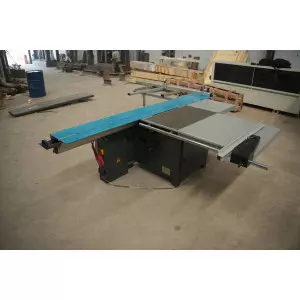

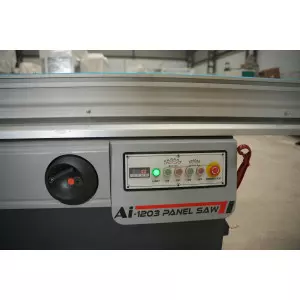

Panel Saw Machine AI-1203
Call Now
WhatsApp
AvailabilityIn Stock
CategoryPanel Saw
Payment MethodsDirectDebit, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%
Panel Saw Machine AI-1203 Details
The Panel Saw Machine AI-1203 from Aarati Industries is expertly designed for accurate, efficient cutting of wood panels, plywood, MDF, and other sheet materials. Combining sturdy construction with advanced cutting technology, this panel saw ensures clean, precise cuts every time, making it an ideal choice for furniture manufacturers, carpenters, and woodworking professionals.
Salient Features
- Precise cut with chip free cutting
- Digital Display for the saw blade angle tilting
- Manual control main saw and scoring saw angle tilt
- Manual controlled main saw and scoring saw up & down.
- European bottom sliding table
Technical Specifications
| Dimension of sliding table | 3200 × 375mm |
| Gross cut capacity | 3200 mm |
| Width of Cut Between Saw Blade And Rip fence | 1300 mm |
| Saw blade diameter | 300 mm x 30 mm (250 - 350) |
| Height of cut | 80/100 mm |
| Speed of main saw blade | 4000/5000 mm |
| Tilting saw blade | 90° - 45° Manual |
| Main motor | 5.5 kw (7.5 HP) |
| Scoring saw blade diam | 120 mm x 20 mm |
| Speed of scoring blade | 8000 rpm |
| Scoring motor | 1.1 kw (1.5 hp) |
| Saw unit up/down | Automatic |
| Overall Dimensions | 3250 x 3390 x 870 mm |
| Total Power | 9 HP |
| Weight | 750 kg |
| Voltage | 415 V |
