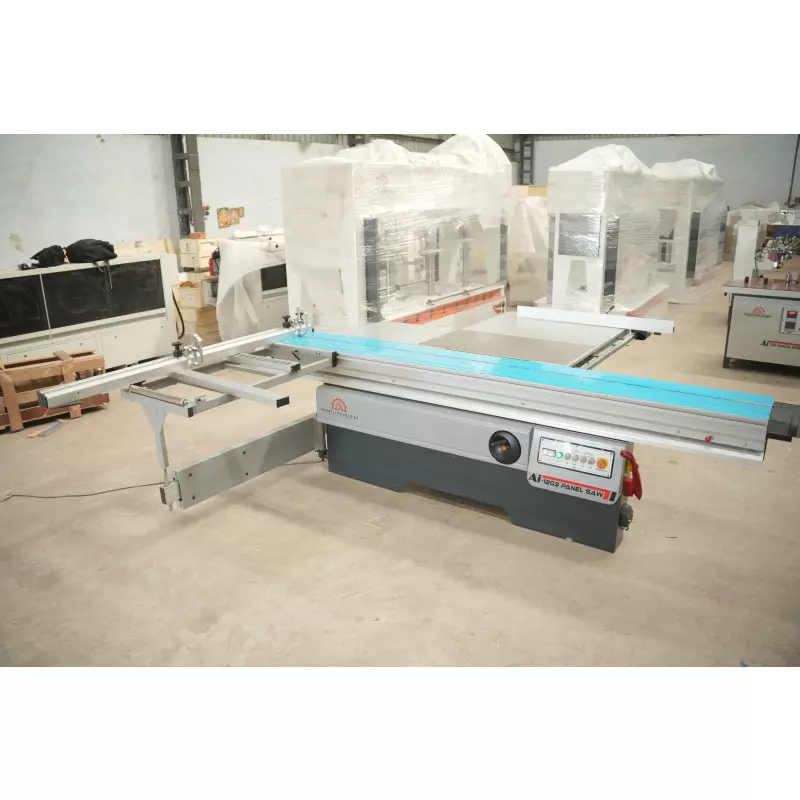

Model: 3200 x 375 mm | Heavy-Duty with Digital Display
Experience precision, power, and performance with Aarati Industries' Sliding Table Panel Saw, designed for efficient and accurate cutting of wood, MDF, plywood, laminated boards, and more. Built with a robust structure and smooth sliding mechanism, this machine is ideal for modern woodworking workshops and furniture manufacturers.
🔧 Technical Specifications
Feature | Specification |
---|---|
Sliding Table Size | 3200 x 375 mm (Single Layer) |
Display | Digital Display |
Cutting Height | Max 80 mm |
Main Saw Blade Diameter | 305 mm |
Main Saw Blade Speed | 4000 / 6000 RPM |
Scoring Saw Blade Speed | 8000 RPM |
Main Saw Spindle Diameter | 30 mm |
Scoring Saw Spindle Diameter | 20 mm |
Main Motor Power | 7.5 HP |
Scoring Saw Motor Power | 1.5 HP |
Blade Tilting Range | 0° to 45° |
Machine Dimensions (LxWxH) | 3200 x 2950 x 900 mm |
Net Weight | 800 kg |
Packing Size | 2100 x 1050 x 1150 mm / 3400 x 450 x 290 mm |
Total Packing Volume | 3.2 CBM |
