Sliding Table Panel Saw

AvailabilityIn Stock
CategorySliding Table Panel Saw
Payment MethodsDirectDebit, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Sliding Table Panel Saw Details

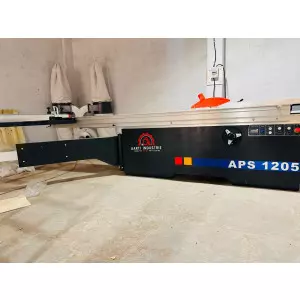

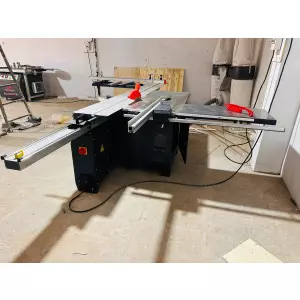

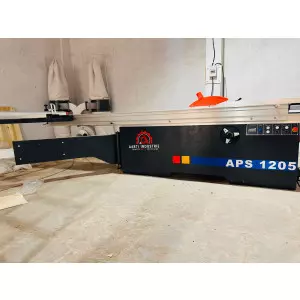

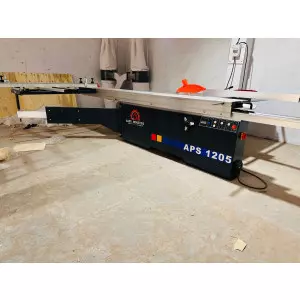

The Sliding Table Panel Saw from Aarti Industries is designed to deliver highly accurate and clean cuts on plywood, MDF, particleboard, and laminated panels. Featuring a robust sliding table mechanism, this machine enables smooth and effortless movement of large panels, ensuring precision and efficiency in every cut.

Built for durability and ease of use, the saw offers adjustable cutting angles, scoring blades for chip-free finishes, and a vibration-resistant frame, making it an indispensable tool for furniture manufacturers, carpenters, and interior fitment workshops.

Digital display for the saw Blade angle tilting.
Manual control main saw and scoring saw angle tilt.
Electric control main saw up and down.
Dimension of sliding table : 3200×375mm
Width of cut between saw blade and rip fence : 1250mm
Diameter of main saw blade : 300 mm
Main spindle diameter : 30mm
Speed of main saw spindle : 4000/5000/6000 rpm
Diameter of scoring saw blade :120 mm
Scoring saw spindle diameter : 20mm
Speed of scoring saw spindle :8000 rpm
Tilting saw group : 0°-45°
Max cutting height (90°) : 80 mm
Max cutting height (45°) : 55mm
Main saw motor power : 7.5hp
Scoring saw motor power : 1.5hp
Voltage : 220v 50Hz (optional)
Weight : 800kg
Dimension : 3250×3390×830mm
