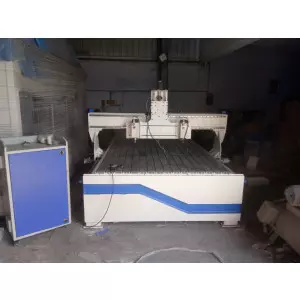

WPVC Cnc Wood Router Machine
WPVC Cnc Wood Router Machine Details
Precision Cutting for Wood and PVC Applications
The WPVC CNC Wood Router Machine from Aarti Industries is an advanced, multi-functional CNC solution designed for precision routing, cutting, and engraving on both wood and PVC sheets. Built with versatility and durability in mind, this machine is ideal for furniture manufacturers, sign makers, interior designers, and architectural fabricators who require high-speed, high-accuracy output on dual materials.
Its heavy-duty construction, powerful spindle, and user-friendly interface make it the perfect tool for both simple cutting tasks and intricate engraving projects.
| X-Y Axis Working Area | 1300 x 2500 mm |
| XY Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 6 kW |
| Model | |
| Machine Type | 3 Axis |
| Job Material | Foam Board, HDF, PVC, Acrylic, Wood, MDF, Sign Board, Plywood, Plastic |
| Spindle Head Type | Single Spindle |
| Maximum Cutting Speed | 50 M |
| Spindle Speed | 180000 |
| Repositioning Accuracy | 0.5 |
| Cutting Tool Diameter | ER 32 |
| Repeated Location | 0,5 |
| Command Code | G Code*u00.mmg*.plt, G Code |
| Driven Motor | Servo Motor |
| Control System | Weihong nk105 g3 |
- Fast speed and high accuracy are ensured by the gear transmission equipped on the CNC Router.
- Original water-cooled spindle gives you very stable, trouble-free, maintenance-free performance for a long period.
- 20 mm linear guide ways for high positional accuracy and long life with high motion accuracy.
- High accuracy and heavy workload are ensured by the imported rails.
- Axis drive systems: X, Y-Rack and Z-Ball Screw.
- Periodic lubrication maintenance is provided by the automatic lubrication systems. The working table is covered with a PVC rigid sheet for the long life of aluminium T slot
Additional Information:
- Delivery Time: Immediately
