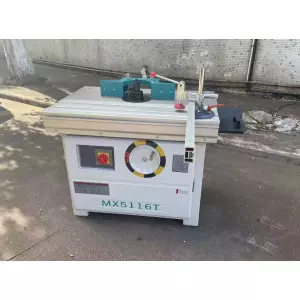

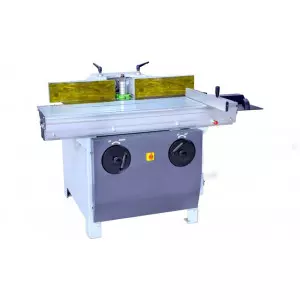

Spindle Modular
Spindle Modular Details
The Spindle Modular from Aarati Industries is designed to deliver precise, powerful, and reliable performance for a wide range of woodworking applications. Engineered as a modular unit, this spindle system can be easily integrated into CNC routers, engraving machines, and other woodworking equipment to enhance cutting accuracy and efficiency.
Built with premium components, the Spindle Modular offers smooth operation, reduced vibration, and excellent durability—ensuring consistent quality and longer machine life.
| Model Name/Number | - |
| Automation Grade | Manual |
| Usage/Application | Wooden Mould |
| Spindle Speed | 5550/7550rpm |
| Brand | Aarati Industries |
| Fix Table Size | 860 X 545 |
| Weight | 350KG Approximate |
| Spindle Motor | 5 HP |
| Phase | 3 Phase |
| I Deal In | New Only |
- Anodized 1250 x 350 mm wide aluminum extrusion sliding table is precision machined
- Ground & electronically balanced spindle for vibration free operation.
- Spindle driven by motors through V-belts and are housed in sealed bearings; thus ensuring minimum maintenance
- A heavy duty an aluminum extruded adjustable side reference fence with in feed and out feed pressure bearing supports.
- 2 spindle speeds 5550 / 7550 rpm for selection depending on tool diameter
- Dust chute is provided on fence assembly for dust evacuation.
- Easy & convenient system for locking of spindle shaft.
Additional Information:
- Delivery Time: 7Days
Related Products
Panel Saw Machine AI-1203
The Panel Saw Machine AI-1203 from Aarati Industries is expertly designed for accurate, efficient cutting of wood panels... Continue

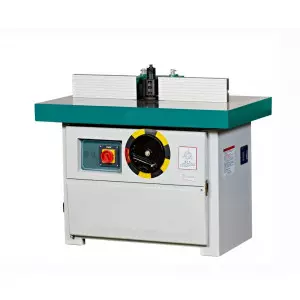

Spindle Moulder Machine
