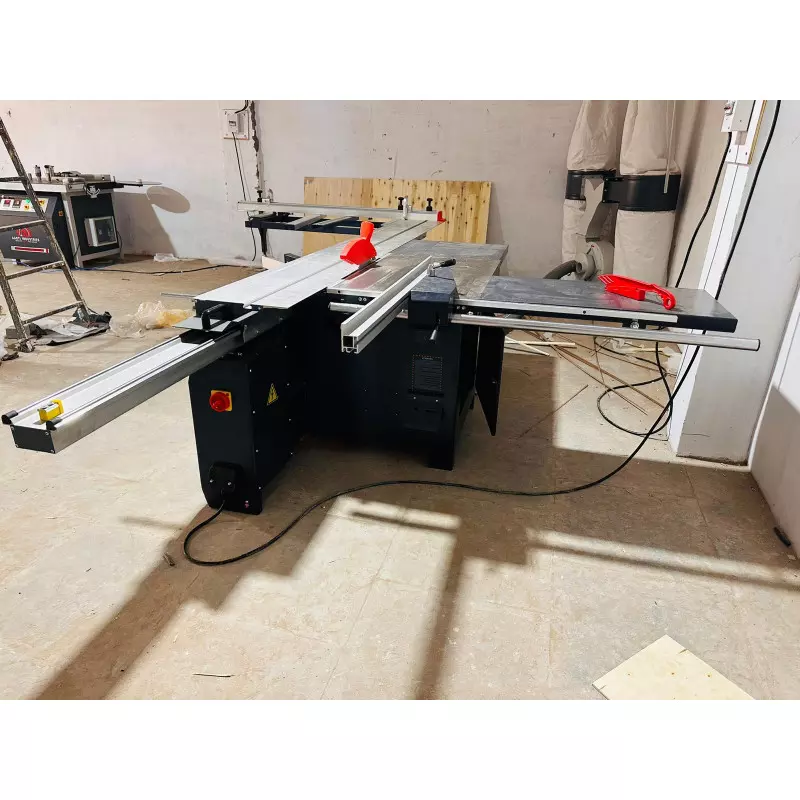

Panel Saw Machine
The Panel Saw Machine from Aarati Industries is a versatile and robust solution designed to deliver accurate and efficient cutting of wood panels, including plywood, MDF, particleboard, and laminate sheets. Built for woodworking professionals and manufacturers, this machine ensures clean cuts with minimal waste, improving productivity and finish quality.
With a strong frame and user-friendly design, the Panel Saw Machine offers smooth operation, easy adjustments, and reliable performance, making it an essential tool for workshops and industrial production lines alike.
Digital display for the saw Blade angle tilting.
Manual control main saw and scoring saw angle tilt.
Electric control main saw up and down.
Dimension of sliding table : 3200×375mm
Width of cut between saw blade and rip fence : 1250mm
Diameter of main saw blade : 300 mm
Main spindle diameter : 30mm
Speed of main saw spindle : 4000/5000/6000 rpm
Diameter of scoring saw blade :120 mm
Scoring saw spindle diameter : 20mm
Speed of scoring saw spindle :8000 rpm
Tilting saw group : 0°-45°
Max cutting height (90°) : 80 mm
Max cutting height (45°) : 55mm
Main saw motor power : 7.5hp
Scoring saw motor power : 1.5hp
Voltage : 220v 50Hz (optional)
Weight : 800kg
Dimension : 3250×3390×830mm
