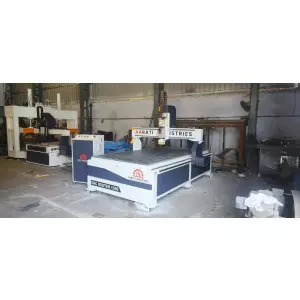

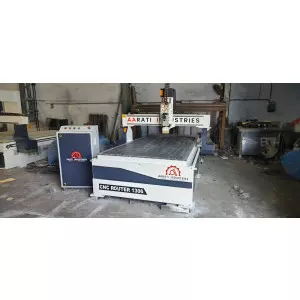

Wood Working CNC Engraving Machine

The Wood Working CNC Engraving Machine from Aarti Industries is a precision-engineered solution tailored for high-quality wood engraving, carving, and cutting. Designed for both artistic applications and industrial-scale production, this CNC machine delivers exceptional performance, accuracy, and repeatability, making it an ideal choice for modular furniture manufacturers, interior designers, sign makers, and wood artisans.

With robust construction, a powerful spindle, and intelligent control systems, this machine is capable of handling complex designs and long production runs with ease. It supports a variety of wood materials such as MDF, plywood, hardwood, softwood, and more.

6 kW Easy Servo CNC Router Machine (Imported)

"CNC ROUTER MODEL NO : 8X4 AIR COOLED
AXIS TRAVEL : X=1300MM Y=3100MM Z=200MM
ROTARY WORKING AREA N/A
AXIS MOTION SYSTEM: X &Y = 20x20 MM HELICAL RACK &PINION Z=BALL SCREW 20X10MM (HIWIN)
AXIS &MOTOR &DRIVE : Easy SERVO&DRIVE ,(BRAND : LEAD SHINE) FOR X,Y,Z-AXIS WITH Belt Drive
WORK SPEED: 15000MM/MIN
IDEAL SPEED: 15000MM/MIN
AXIS SLIDING SYSTEM 20MM LM GUIDE&BLOCK(BRAND:HIWIN)
SPINDLE MOTOR &DRIVE: POWER 6 KW
ROTATION SPEED:18000RPM
COLLING SYSTEM: AIR COOL
SPINDEL BRAND: HQD
COLLET SIZE: ER 32
MAX.TOOL SIZE: 20MM
SPINDEL MOTOR DRIVE: FRECON
MACHINE CONTROLLER: NK 105
MACHINE WEIGHT: 1000 KG (APPROX)
STRUCTURE: MILD STEEL HEAVY DUTY STRUCTURE
CABLES : IGUS&LAPP(GERMAN MADE)
ELECTRICS: SCHNEIDER/L&T/MITSUBISHI
REQUIRED POWER SUPPLY: THREE PHASE 420V(50HZ)
LUBRICATION SYSTEM: MANUAL LUBRICATION OIL PUMP
APPLICABLE MATERIAL: WOOD, HARD WOOD, CORIAN, ACP, MDF,  ACRYLIC, PVC
EXTRA SUPPORT: TOOLS & COLLET (FOR TRAINING ) C HOOK SPANNER AND FIX SPANNERS, ALLEN KEY SET, CLAMPS, WORK JOB HOLDING
MACHINE SIZE: 10X7X6
TABLE: CLAPING WITH SS TRAY"
