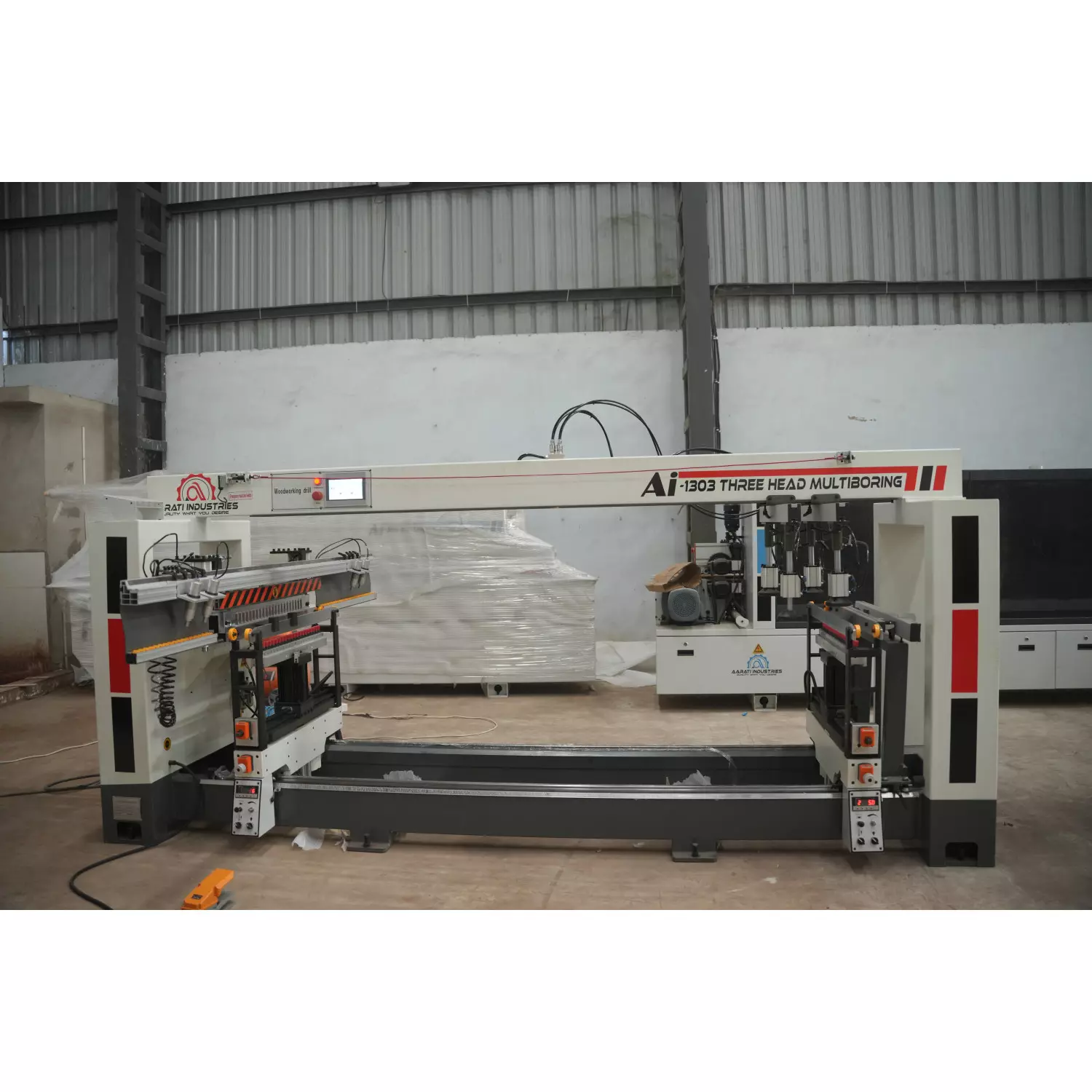

Three Head Multi Boring (Ai-1303) Manufacturer In Jabalpur
Details of Three Head Multi Boring (Ai-1303)
MODEL NO – AI-1303
CNC Touch Screen Multi-Spindle Boring Machine
High-Speed Drilling for Modular Furniture & Wood Components Manufactured by Aarati Industries
The AI-1303 is a powerful, high-precision multi-spindle boring machine, designed to meet the demanding needs of the modular furniture and woodworking industry. With 63 drilling heads, a touch-screen PLC control system, and a large processing area, it ensures accuracy, speed, and operator convenience.
? Technical Specifications:
Model: AI-1303
Max Drill Diameter: 35 mm (D = 13 mm)
Max Drilling Depth: 60 mm
Max Processing Pitch (L × B): 2500 × 640 mm
Pitch of Drill Head: 10 mm
Spindle Speed: 2840 RPM
Total Drill Shafts: 21 × 3 = 63 Heads
Total Power: 4.5 kW
Operating System: Touch Screen PLC Panel
Machine Dimensions: 2580 × 1300 × 1750 mm
External Size: 3750 × 2500 × 1560 mm
Weight: Approx. 1500 kg
? Key Features:
? 63 spindles for fast multi-point drilling in a single pass
? Touch Screen PLC Panel for easy and precise operation
? Large working area – ideal for full-sized panels and components
⚙️ Consistent 10 mm spindle pitch for uniform hole spacing
? High-speed motor for increased efficiency and smooth drilling
? Perfect for modular furniture manufacturers and carpentry workshops
Offered Product
Three Head Multi Boring (Ai-1303)
The Ai-1303 Three Head Multi Boring Machine From Aarati Industries Is Engineered To Deliver Exceptional Performance In High-volume Modular Furniture Production. With Three Synchronized Drilling Heads—vertical, Horizontal, And Side—this Machine Significantly Reduces Processing Time And Increases Accuracy Across Complex Boring Patterns.Built For Reliability And Precision, The Ai-1303 Is A Perfect Match For Woodworking Businesses Aiming For Maximum Output With Minimal Setup Time.Sal... Read moreThree Head Multi Boring Machine Supplier In Patna
Get Robust Three Head Multi Boring Machine In Patna Built To Perform Under Tough Production Needs And Deliver Consistent Results. This Machine Fits Well In Busy Workshops Needing Multiple Holes Bored Simultaneously Without Wasting Time Or Effort.The Machine Helps Speed Up Boring Operations By Using Three Heads At Once, Cutting Down Cycle Time Significantly. It's Good For Making Furniture Parts That Require Precise Hole Placements On Panels, Saving Labor Costs And Reducing Errors Common With Manu Continue
Three Head Multi Boring Machine Supplier In New Delhi
Speed Up Your Boring Tasks With Our Three Head Multi Boring Machine In New Delhi. It’s Built To Handle Multiple Holes At Once, Cutting Down Time And Mistakes In Your Production. This Machine Fits Well Into Varied Workflows, Letting You Take On Jobs That Need Precision Without Slowing Down.The Design Focuses On Steady Operation And Long Service Life, Using Strong Parts That Resist Wear. You Can Adjust It Quickly For Different Panel Sizes Or Hole Patterns. It Also Works Fine With Both Wood And P Continue
Three Head Multi Boring (Ai-1303) Machine Manufacturer In Jhansi
Multi-Spindle Drilling Machine – Model AI-1303Manufactured By Aarati Industries Engineered For Precision | Built For Performance | Designed To LastAarati Industries Presents The AI-1303, A High-performance Multi-spindle Drilling Machine Built For Accuracy, Efficiency, And Durability In Large-scale Operations. With 63 Synchronized Drill Shafts And A Smart Touchscreen PLC System, The AI-1303 Is The Perfect Solution For Fast, Repeatable, And High-volume Drilling Tasks.⚙️ Technical S Continue
