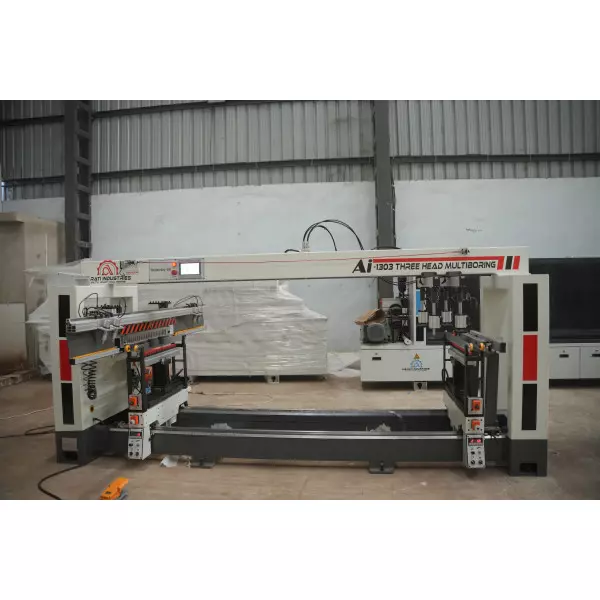

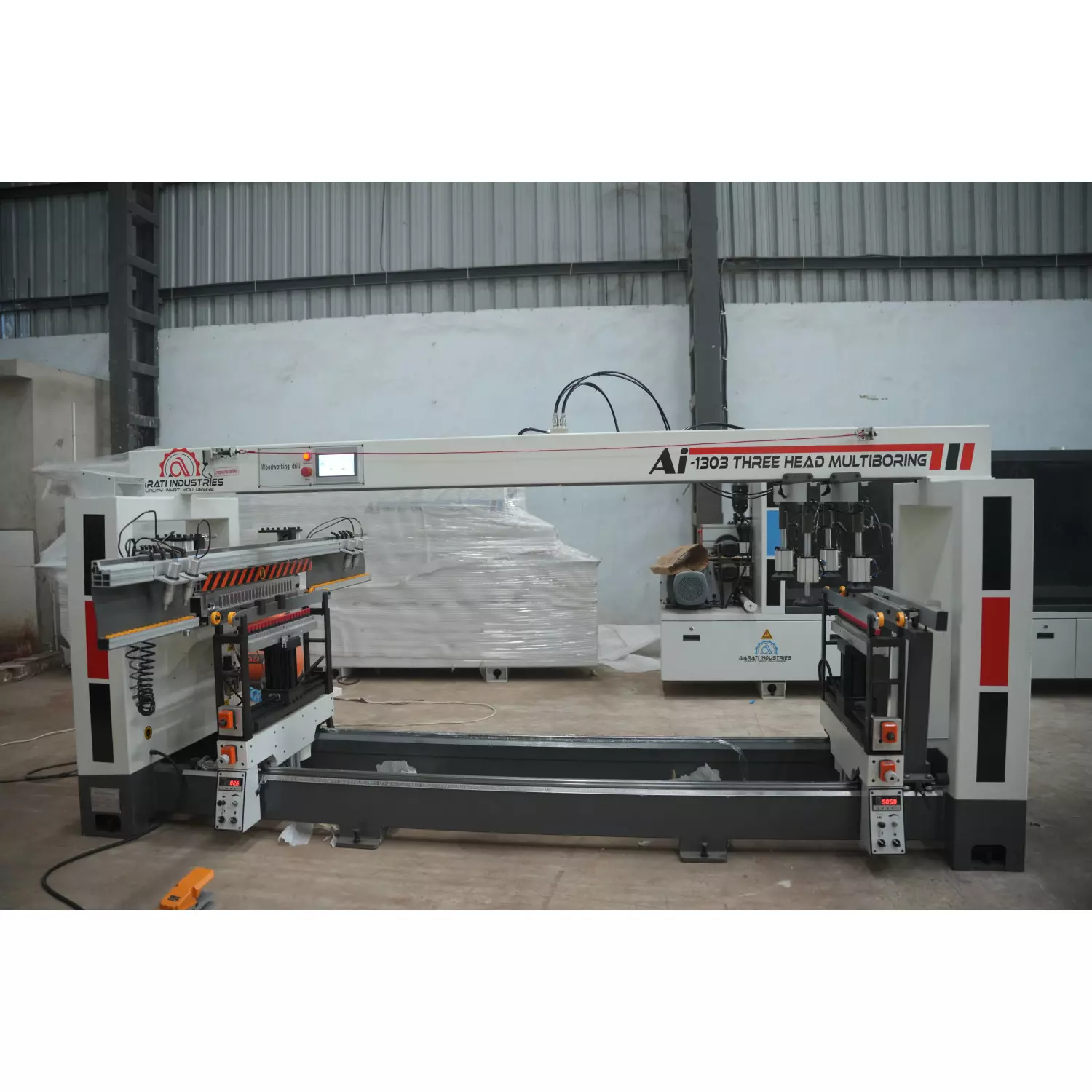

Three Head Multi Boring (Ai-1303) Machine Manufacturer In Jhansi
Details of Three Head Multi Boring (Ai-1303)
Multi-Spindle Drilling Machine – Model AI-1303
Manufactured by Aarati Industries Engineered for Precision | Built for Performance | Designed to Last
Aarati Industries presents the AI-1303, a high-performance multi-spindle drilling machine built for accuracy, efficiency, and durability in large-scale operations. With 63 synchronized drill shafts and a smart touchscreen PLC system, the AI-1303 is the perfect solution for fast, repeatable, and high-volume drilling tasks.
⚙️ Technical Specifications
🛠️ Max. Drilling Diameter: Up to 35mm (Tool Shank: Ø13mm)
📐 Max. Drilling Depth: Up to 60mm
🔲 Max. Processing Pitch: 2500mm (L) × 640mm (B) – Wide work area for larger components
🔄 Spindle Speed: High-speed 2840 RPM for clean and accurate results
🧵 Pitch Between Drill Heads: 10mm – perfect for closely spaced operations
🌀 Total Drill Shafts: 63 Spindles (21 x 3 Rows) – maximum coverage and speed
⚡ Motor Power: 4.5 KW – strong and energy-efficient
📏 Machine Dimensions:
External: 3750mm x 2500mm x 1560mm
Base Frame: 2580mm x 1300mm x 1750mm
⚖️ Machine Weight: Approx. 1500 KG – sturdy and stable during operation
🖥️ Control System:
Advanced Touchscreen PLC Panel – easy operation, quick setup, and real-time diagnostics
✅ Why Choose the AI-1303 from Aarati Industries?
Heavy-duty construction for industrial reliability
High spindle count for mass production and time-saving
User-friendly interface with smart touchscreen controls
Compact design to fit efficiently into your workshop
Perfect for furniture, panel boards, metal fixtures, and more
Offered Product
Three Head Multi Boring (Ai-1303)
The Ai-1303 Three Head Multi Boring Machine From Aarati Industries Is Engineered To Deliver Exceptional Performance In High-volume Modular Furniture Production. With Three Synchronized Drilling Heads—vertical, Horizontal, And Side—this Machine Significantly Reduces Processing Time And Increases Accuracy Across Complex Boring Patterns.Built For Reliability And Precision, The Ai-1303 Is A Perfect Match For Woodworking Businesses Aiming For Maximum Output With Minimal Setup Time.Sal... Read moreThree Head Multi Boring (Ai-1303) Machine Manufarurer In Delhi
Aarati Industries AI-1303 Multi Boring Machine: Precision For Ready-Made Furniture Panel DrillingThe Aarati Industries AI-1303 Is A Robust Multi-boring Machine Designed To Meet The Demanding Needs Of The Ready-made Furniture Industry. With Its Triple-head Configuration—comprising One Horizontal And Two Vertical Boring Heads—it Ensures Precise And Efficient Drilling Of Panels Up To 2500 Mm In Length🔧 Key SpecificationsMax. Drill Diameter: 35 Mm (D=13 Mm)Max. Drilling Depth: Continue
Three Head Multi Boring (Ai-1303) Machine Manufacturer In Vadodara
🔩 Advanced Multi-Spindle Hinge Boring Machine | Model: AI-1303 📐 Precision Engineered | High Productivity | Electro-Pneumatic ControlStep Into The Future Of Woodworking With Aarati Industries’ AI-1303, A High-capacity, Multi-spindle Hinge Boring Machine Built For Precision, Performance, And Productivity In Modular Furniture And Cabinetry Production.Perfectly Suited For Heavy-duty Operations, The AI-1303 Offers Advanced Electro-pneumatic Control, A Touch Screen PLC Panel, And An E Continue
Three Head Multi Boring (Ai-1303) Machine Manufacturer In Kanpur
AI-1303 Multi-Spindle Drilling Machine⚙️ Engineered By Aarati Industries – Precision You Can Trust.🚀 Unleash The Power Of Precision DrillingThe AI-1303 Multi-Spindle Drilling Machine Is Designed For Industries That Demand High-speed, High-accuracy, And High-efficiency Operations. Whether You're Handling Large-scale Production Or Intricate Drilling Tasks, This Powerhouse Delivers Unmatched Performance With Every Cycle.Built With Robust Engineering And Powered By A Smart Touch Continue
