Imported Performance. Indian Reliability. By Aarati Industries – Precision, Power, and Performance.
📐 Technical Specifications
Parameter | Details |
---|---|
Model | CNC Router 8x4 (Air Cooled) |
Axis Travel | X: 1300mm, Y: 2500mm, Z: 300mm |
Spindle Power | 6kW (HQD) |
Spindle Speed | 18,000 RPM |
Cooling System | Air Cooled |
Collet Type | ER32 (Max Tool Size: 20mm) |
Motion System | X/Y: 25x25mm Helical Rack & Pinion |
Z: 20x10mm HIWIN Ball Screw | |
Guide System | 20mm LM Guide & Blocks (HIWIN) |
Motor & Drive | Leadshine Servo with Planetary Gearbox |
Working Speed | 15,000 mm/min |
Idle Speed | 15,000 mm/min |
Control System | Reach Auto Controller |
Power Supply | 3-Phase, 420V, 50Hz |
Machine Weight | Approx. 1000 kg |
Machine Size (LxWxH) | 10ft x 7ft x 6ft |
Table Type | Manual Clamping with Stainless Steel Tray |
Lubrication | Manual Oil Pump |
Included Accessories | Tools, Collets, C Hook, Spanners, Allen Keys, Clamps |

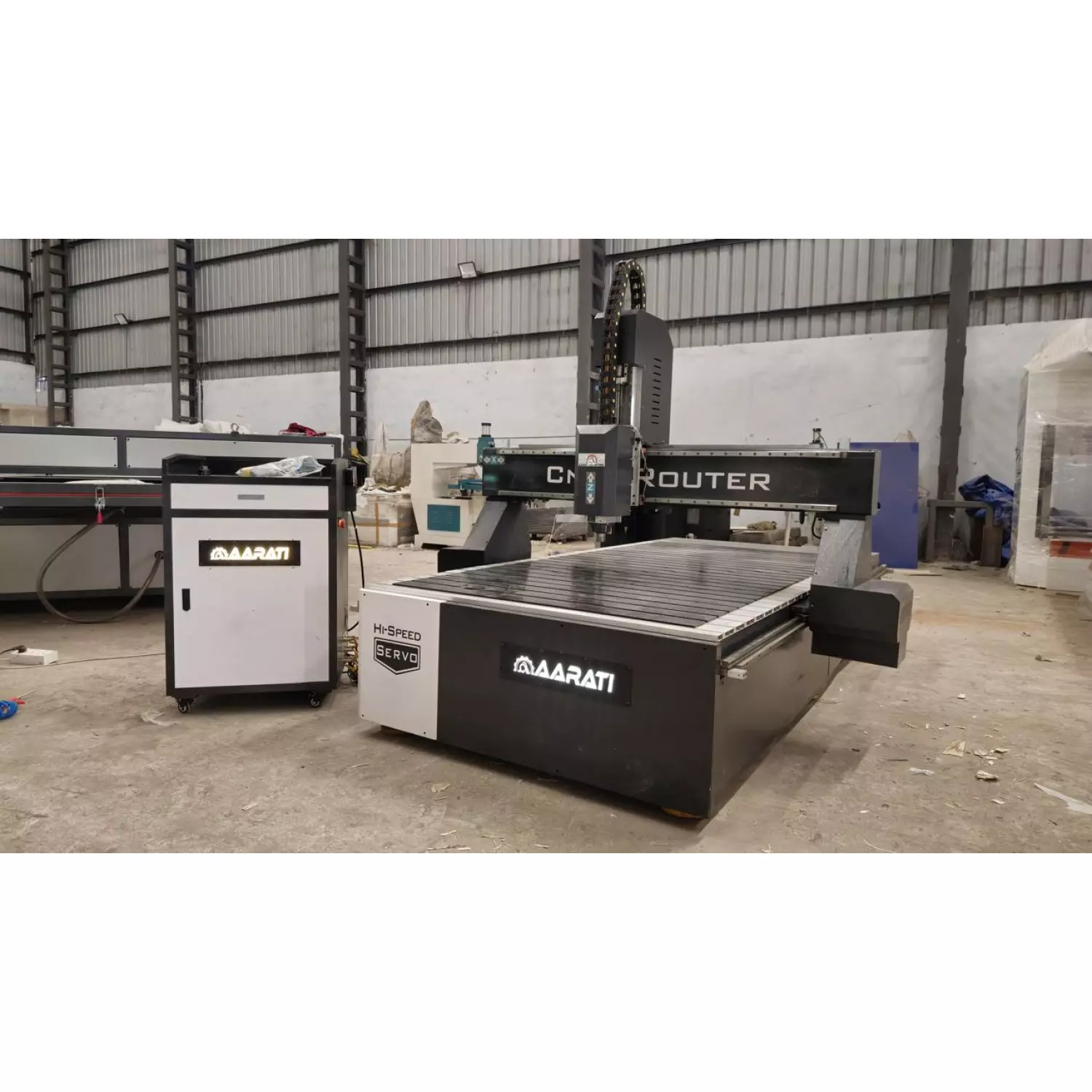

🪵 Wood Working CNC Router – Model No: 8x4 Air CooledBy Aarati IndustriesPrecision | Power | PerformanceEngineered For Excellence, The Aarati Industries 8x4 CNC Router Is Designed For High-speed, High-accuracy Wood Carving And Cutting. Powered By A 6kW HQD Air-cooled Spindle And A Fully Servo-driven Axis System (Leadshine) With Planetary Gearboxes, This Machine Delivers Superior Results In Furniture Manufacturing, Signboard Carving, MDF Routing, And More.Built With A Heavy-duty M Continue
6kW Easy Servo CNC Router MachineModel No: 8x4 Air Cooled Brand: Aarati Industries✅ Technical Specifications:Working Area (X, Y, Z): 1300mm × 2500mm × 300mmRotary Working Area: N/AAxis Motion System: X & Y: 25x25mm Helical Rack & Pinion Z: Ball Screw 20x10mm (HIWIN)Motor & Drive System: Leadshine Servo Motor & Drive For X, Y, Z Axis With Planetary GearboxAxis Guide System: 20mm Linear Motion Guide & Block (HIWIN)Working Speed: 15,000 Mm/minIdle Continue
