Wood Panel Saw Machine Manufacturer In Jalgaon
Details of Wood Panel Saw Machine

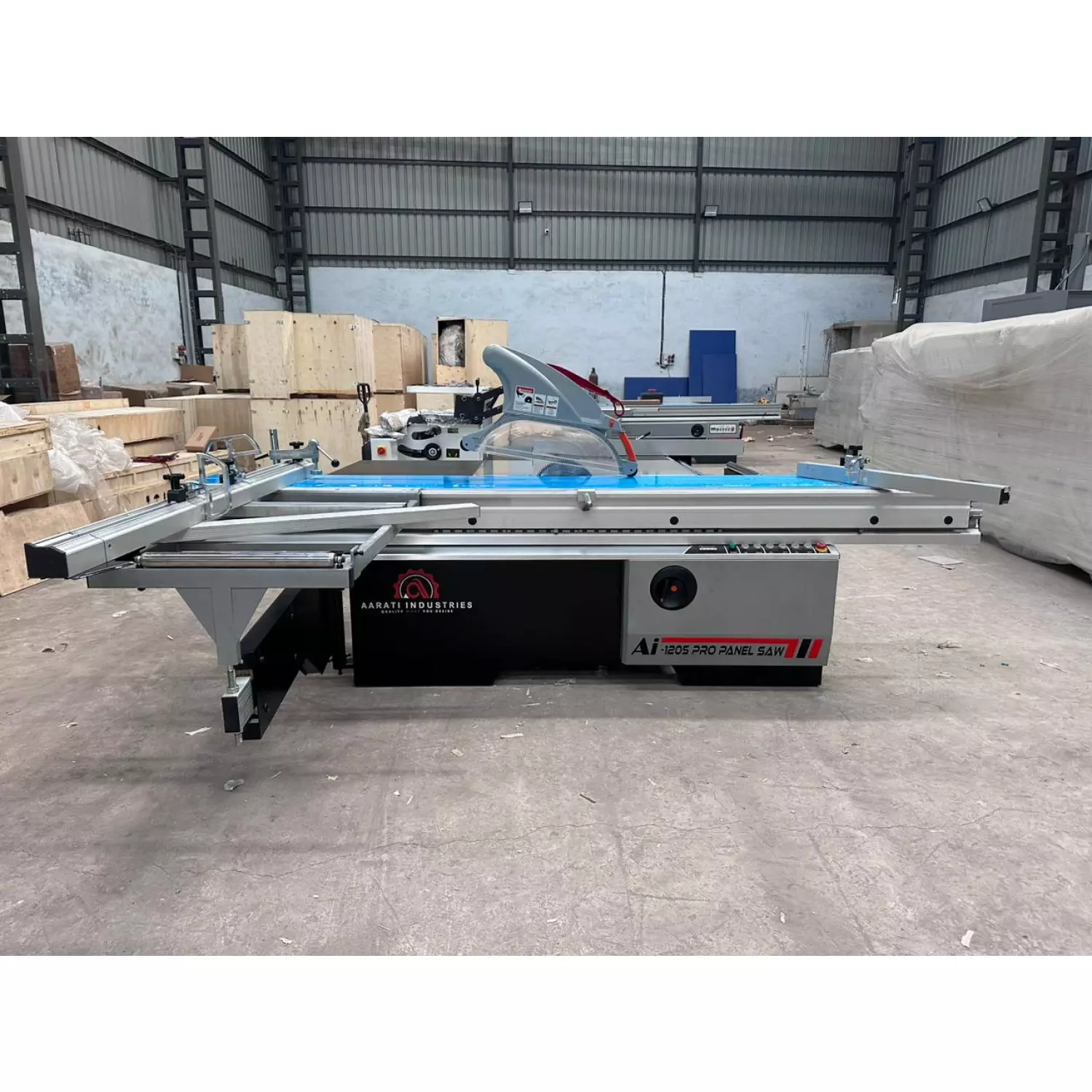

AARATI INDUSTRIES – MODEL NO: AI 1205 PRO
Heavy-Duty Precision Sliding Table Panel Saw
Designed and engineered by Aarati Industries, the AI 1205 PRO is a high-performance sliding table saw built for precision, power, and reliability. Engineered to handle a wide range of cutting tasks in woodworking, this machine is ideal for professional workshops and industrial applications.
Technical Specifications:
Sliding Table Size: 3200 mm × 430 mm
Rip Fence Cutting Capacity: Up to 1300 mm
Main Saw Blade Diameter: 300 mm
Main Spindle Diameter: 30 mm
Main Spindle Speed Options: 3000 / 4000 / 5000 RPM
Scoring Saw Blade Diameter: 120 mm
Scoring Spindle Diameter: 20 mm
Scoring Spindle Speed: 8000 RPM
Saw Unit Tilt Range: 90° to 45°
Max. Cutting Height at 90°: 100 mm
Max. Cutting Height at 45°: 80 mm
Main Saw Motor Power: 7.5 HP
Scoring Saw Motor Power: 1.5 HP
Total Power Consumption: 9 HP
Voltage: 415V, 50Hz (Optional configurations available)
Saw Unit Movement (Up/Down): Electrically Operated
Machine Weight: Approx. 800 kg
Overall Dimensions (L×W×H): 3250 mm × 3500 mm × 870 mm
Key Features:
Precision Sliding Table: Ensures accurate and smooth movement for large panels.
Dual Blade System: Equipped with a main and scoring saw for flawless cuts without chipping.
Robust Motor Configuration: High-powered motors designed for continuous industrial use.
Adjustable Saw Angles: Flexible cutting angle from 90° to 45° for versatile operations.
User-Friendly Controls: Electric lifting system for the saw unit for effortless height adjustment.
Heavy-Duty Frame: Stable and vibration-free construction ensures long-term durability.
Offered Product
Wood Panel Saw Machine
The Wood Panel Saw Machine From Aarati Industries Is Engineered To Deliver Accurate And Clean Cuts On A Variety Of Wood Panels, Including Plywood, MDF, Particle Boards, And Laminates. Designed For Both Small Workshops And Large-scale Production Units, This Machine Enhances Cutting Efficiency While Maintaining High Precision And Safety Standards.With A Robust Build And Advanced Cutting Technology, Our Wood Panel Saw Machine Ensures Smooth Operation, Minimal Material Waste, And Consistent Perfor... Read moreWood Panel Saw Machine Manufacturer In Batala
High-Performance Plywood Cutting MachinePowered By Aarati Industries – Built For Precision, Engineered For DurabilityTake Your Woodworking Projects To The Next Level With Our State-of-the-art Plywood Cutting Machine, Designed For Carpenters, Modular Furniture Makers, And Home Design Professionals Who Demand Accuracy, Power, And Long-term Reliability.🛠️ Key Technical Specifications:Max. Cutting Depth (90°): 85 MmMax. Cutting Depth (45°): 50 MmSaw Blade Speed: 5000 R Continue
Wood Panel Saw Machine Manufacturer In Bengaluru
MODEL NO - AI 1205 PRO | Precision Sliding Table Panel Saw Powered By Aarati Industries – Engineered For ExcellenceStep Into The Future Of Woodworking Precision With The AI 1205 PRO, A High-performance Sliding Table Panel Saw Designed To Meet The Most Demanding Industrial Applications. Built For Accuracy, Durability, And Ease Of Use, This Powerhouse Machine Is A Perfect Fit For Professional Workshops And Manufacturing Units.🔧 Technical Specifications:Sliding Table Dimensions: 3200 Continue
Wood Panel Saw Machine Manufaturer In Mumbai
🪚 Panel Saw Machines By Aarati IndustriesPrecision Cutting Solutions For Modern WoodworkingAt Aarati Industries, We Offer A Range Of High-performance Panel Saw Machines Built For Accuracy, Strength, And Efficiency. Designed For Cutting Solid Wood, MDF, Plywood, Laminated Boards, And Particle Boards, Our Machines Are Trusted By Small Workshops And Large Furniture Manufacturers Alike.Our Sliding Panels Are Crafted From Premium-grade Aluminum Alloy, And The Desks Are Reinforced To Resist B Continue
