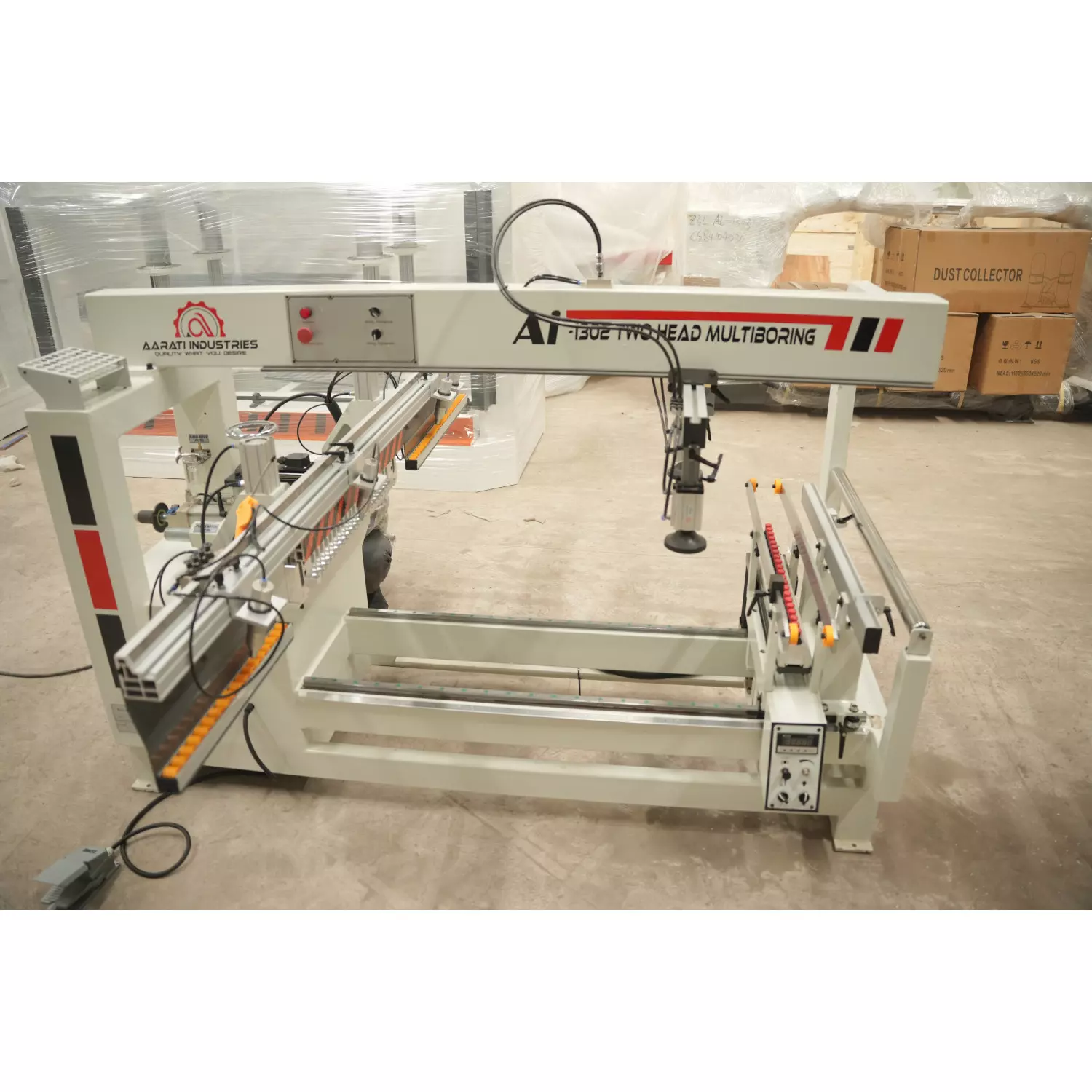

Two Head Multi Boring (Ai-1302) Machine Manufacturer In Hisar
Details of Two Head Multi Boring (Ai-1302)
Multi-Spindle Boring Machine
By Aarati Industries | Efficient Drilling. Precision Engineering.
Designed for precision and high-output performance, the Multi-Spindle Boring Machine from Aarati Industries is an ideal solution for mass furniture production and cabinet manufacturing. Built to handle complex drilling patterns with speed and accuracy, it ensures consistent results across wood, MDF, and other panel materials.
🔧 Technical Specifications
Maximum Drilling Diameter: Ø 35 mm (D = 15 mm)
Maximum Drilling Depth: 60 mm
Max. Processing Pitch (L × B): 150 × 640 mm
Min. Processing Pitch (L × B): 135 × 32 mm
Drill Head Pitch: 10 mm
Spindle Speed: 2840 RPM
Total Drill Shafts: 21 × 2 (Double-head configuration for increased productivity)
Total Motor Power: 3 kW
Machine Weight: 750 kg
Machine Dimensions: 2580 × 1300 × 1750 mm
External Size: 2300 × 2500 × 1560 mm
🧰 Key Features
Dual-Spindle Operation: 21×2 shafts for simultaneous drilling, ideal for dowel, shelf, and panel boring
High-Speed Performance: 2840 RPM spindle speed ensures fast, clean boreholes
Flexible Pitch Adjustment: Enables processing of both wide and narrow panel sizes
Industrial-Grade Build: Sturdy frame ensures stability during continuous operation
Compact Footprint: Space-saving design while maintaining heavy-duty output capacity
Precision Engineering: Ideal for modular furniture and cabinet makers
Offered Product
Two Head Multi Boring (Ai-1302)
The Ai-1302 Two Head Multi Boring Machine By Aarati Industries Is Designed To Meet The High-speed Drilling Needs Of Modular Furniture Production. Equipped With Two Precision Boring Heads, This Machine Ensures Fast And Accurate Vertical And Horizontal Hole Drilling On A Variety Of Wooden Panels.Ideal For Cabinet Makers, Modular Kitchen Units, Wardrobe Production, And Furniture Factories, The Ai-1302 Enhances Workflow Efficiency While Delivering Consistent Drilling Quality.Salient Features... Read moreTwo Head Multi Boring (Ai-1302) Machine Manufacturer In Patna
High-Speed Multi-Spindle Boring Machine – Dual Head Precision For Efficient DrillingBy Aarati IndustriesEngineered For High-precision And High-productivity Boring Operations, The Dual-head Multi-Spindle Boring Machine From Aarati Industries Is Your Go-to Solution For Cabinet Manufacturing, Panel Furniture Production, And Woodworking Applications Requiring Multiple Accurate Drillings In One Cycle.With Dual 21-spindle Heads And A Robust 3 KW Motor, This Machine Delivers Smooth, Synchro Continue
Two Head Multi Boring (Ai-1302) Machine Manufacturer In Vasai
🧰 Multi-Spindle Boring Machine – Double Head ModelManufacturer: Aarati Industries | Origin: Ahmedabad, India Application: Precision Horizontal & Vertical Drilling For Modular Furniture Production🔹 Product OverviewThe Multi-Spindle Boring Machine By Aarati Industries Is Engineered For Precision Drilling In Modular Furniture Manufacturing. This Double-head Model Is Equipped With 21 × 2 High-speed Drilling Shafts, Allowing Simultaneous Operations For Doweling, Hinge Bori Continue
