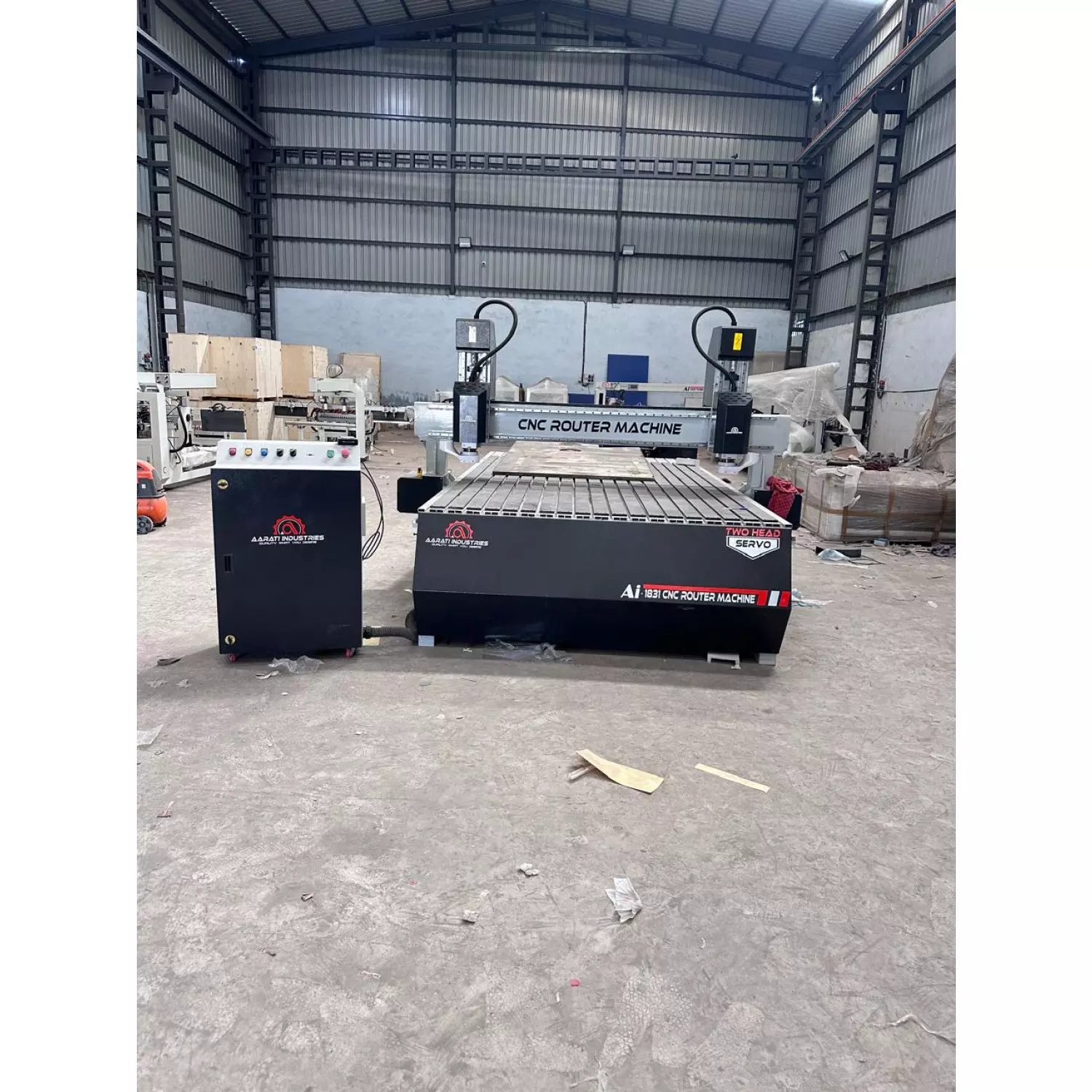

6kW Dual Head Easy Servo CNC Router Machine
Model No: AI-1531 Brand: Aarati Industries – Powering Precision
🛠️ Key Specifications:
Working Size: 10x5 ft (1500mm x 3100mm x 300mm)
Model No: AI-1531
Structure: Heavy Duty Mild Steel Frame
Machine Size: 12x7x6 ft
Table Type: SS Tray with Clamping System
⚙️ Axis & Motion System:
X & Y Axis: 25x25mm Helical Rack & Pinion
Z Axis: 20x10mm Ball Screw (Hiwin)
Guide Rails: 25mm LM Guide & Block (Hiwin)
Drive System: Easy Servo Motors with Planetary Gearbox
Motor Brand: Yako Tek (X, Y, Z Axis)
Lubrication: Manual Oil Pump
🔩 Spindle Details:
Spindle Power: 6kW x 2 (Dual Head)
Spindle Brand: HQD
Cooling: Air-Cooled
Rotation Speed: 18,000 RPM
Collet Type: ER32 (Max Tool Diameter: 20mm)
Spindle Drive: FRECON
📈 Performance:
Working Speed: Up to 15,000 mm/min
Idle Speed: 15,000 mm/min
Controller: NK-105
⚡ Electrical & Safety:
Power Supply: 3 Phase, 420V, 50Hz
Electrical Components: Schneider / L&T / Mitsubishi
Cables: IGUS & LAPP (German Technology)
🧰 Included Accessories:
Tool Kit with Collets
C-Hook & Fix Spanners
Allen Key Set
Clamps for Work Holding
On-Site Training Support
