Engineered by Aarati Industries

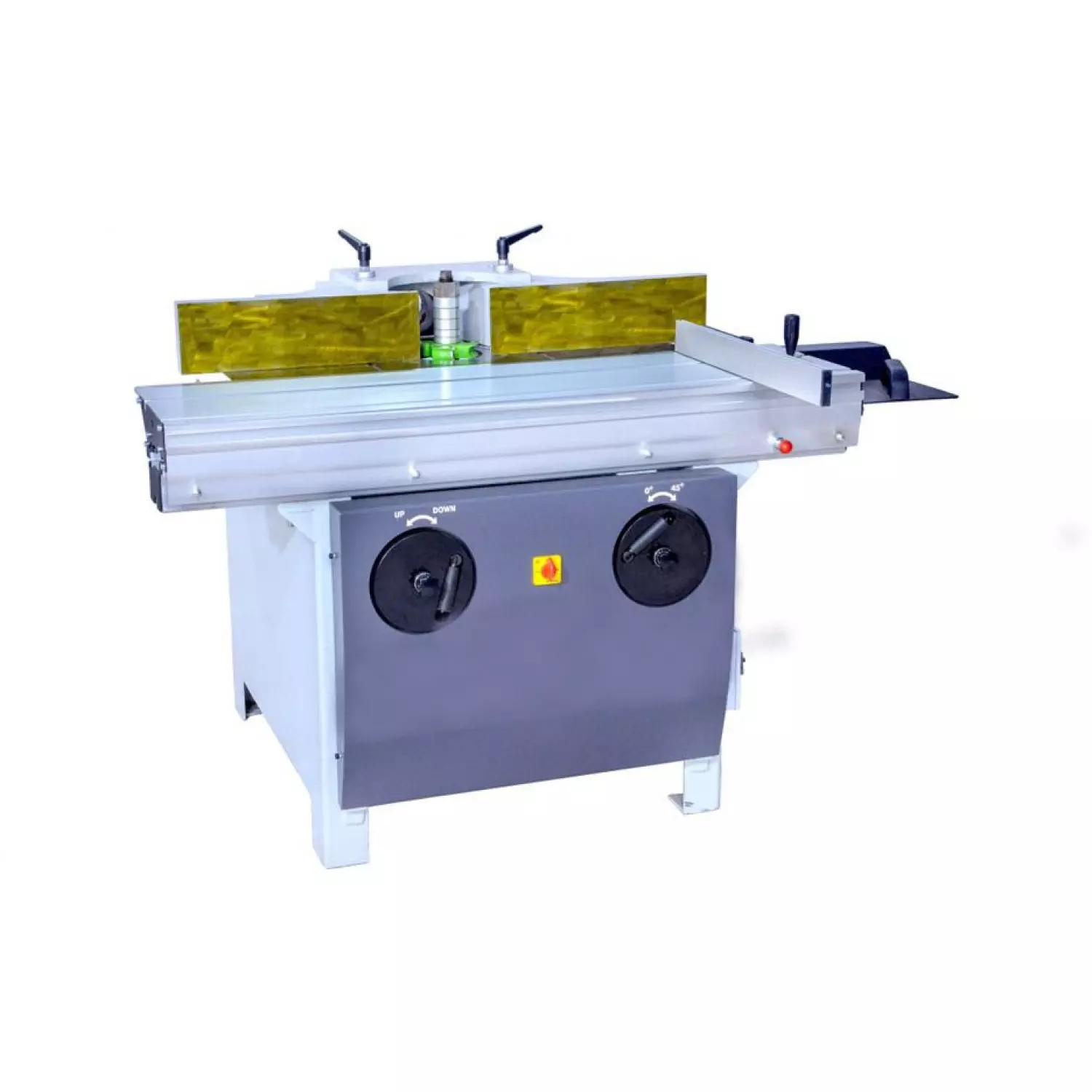

The Ai-340Pro Spindle Moulder Machine from Aarati Industries is a robust and high-performance woodworking solution designed for precision profiling, shaping, rebating, and jointing operations. Engineered for industrial and workshop applications alike, this versatile machine offers a solid cast-iron body, ensuring minimal vibration and long-term structural integrity. The manual tilting spindle from 90° to 45° makes it ideal for complex edge shaping and angle cutting tasks. Whether you're working with hardwood, MDF, or composite materials, the Ai-340Pro delivers consistent results with high accuracy and efficiency.
🔧 Technical Specifications:
Specification | Details |
---|---|
Model | Ai-340Pro |
Sliding Table Length | 1300 mm |
Spindle Table Width | 360 mm |
Spindle Diameter | 30 mm |
Spindle Speed | Dual Speed – 4000 / 5000 RPM |
Spindle Travel (Up/Down) | 100 mm |
Tilting of Spindle | 90° to 45° (Manual Tilt Mechanism) |
Motor Power | 5 HP (High-efficiency industrial motor) |
Machine Weight | Approx. 450 kg |
Frame Structure | Heavy-duty cast iron for superior rigidity |
Application Areas | Moulding, Rebating, Chamfering, Shaping, Grooving |
Operation Type | Manual spindle tilting with mechanical adjustment |
Safety Features | Integrated guards and emergency stop system |
