Sliding Table Panel Saw Machine Manufacturer In Shimoga
Details of Sliding Table Panel Saw Machine

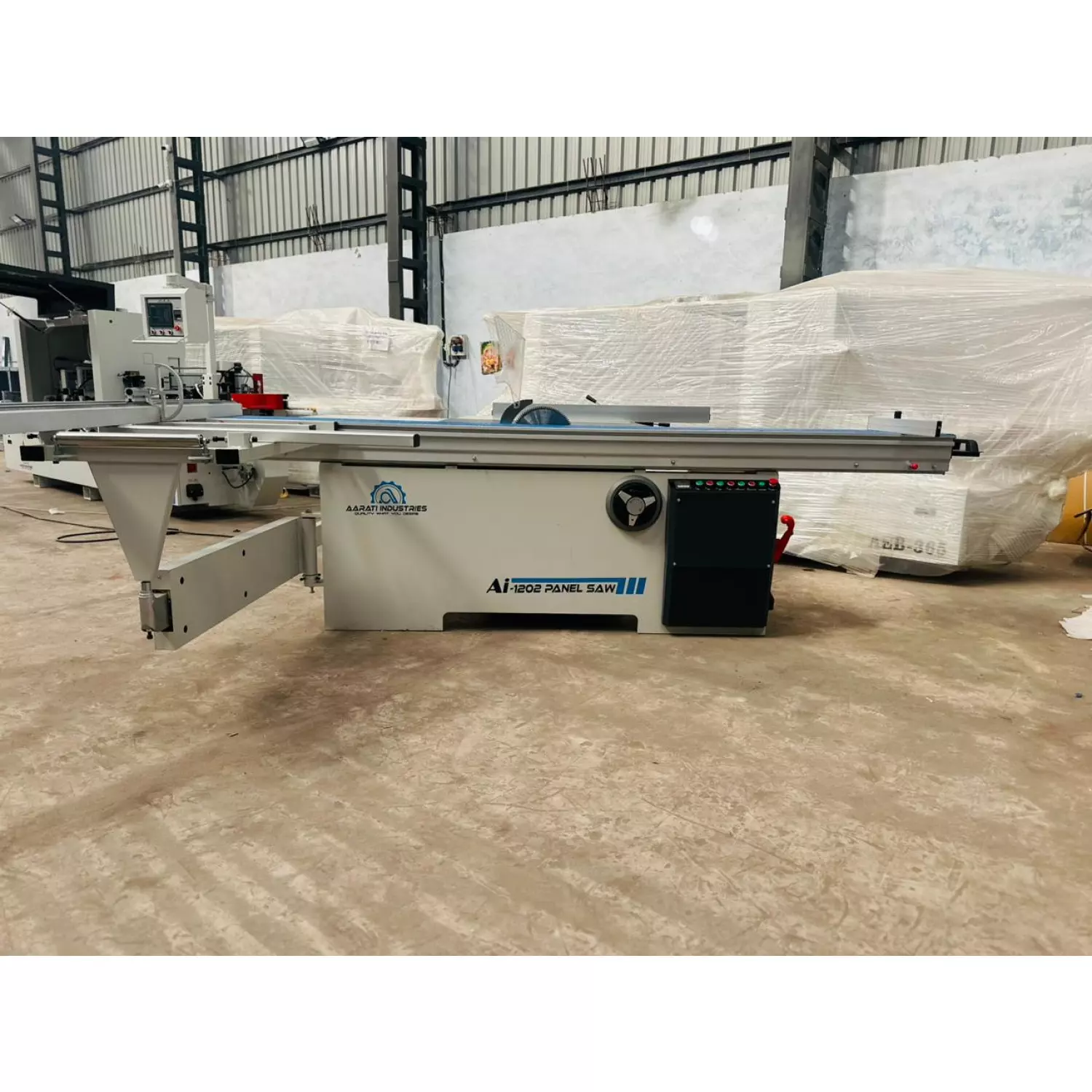

Aarati Industries – Precision Sliding Table Saw (Single Layer) 3200mm
Built for accuracy and performance, the Sliding Table Saw by Aarati Industries is designed to deliver clean, high-precision cuts across plywood, MDF, hardwood, and other panel materials. Engineered with advanced components and digital features, this heavy-duty woodworking machine is ideal for modular furniture production, panel sizing, and interior fabrication work.
🛠️ Key Specifications:
Sliding Table Size: 3200 × 375 mm
Max Cutting Height: 80 mm
Main Saw Blade Diameter: 305 mm
Main Saw Spindle Diameter: 30 mm
Scoring Saw Blade Speed: 8000 rpm
Main Saw Speed: 2-Speed – 4000 / 6000 rpm
Saw Blade Tilting: 0° to 45° (for bevel & angled cuts)
Scoring Saw Spindle Diameter: 20 mm
⚙️ Motor Configuration:
Main Saw Motor Power: 7.5 HP
Scoring Saw Motor Power: 1 HP
High-efficiency motors for powerful, vibration-free performance
📐 Construction & Features:
Frame Construction: Rigid body with heavy-duty metal frame for superior stability
Control System: Integrated Digital Display for easy setup and accurate adjustments
Lubrication System: Manual lubrication pump for long-term, smooth machine operation
Table Movement: Precision linear guide rail ensures smooth and consistent sliding
Saw Tilting Mechanism: Manual adjustment with clear scale indicator
📦 Machine Dimensions & Packaging:
Overall Machine Size: 3200 × 2950 × 900 mm
Net Weight: Approx. 700 kg
Packing Size:
Main Body: 2100 × 1050 × 1150 mm
Sliding Table: 3400 × 450 × 290 mm
Packing Volume: Approx. 3.2 CBM
Offered Product
Sliding Table Panel Saw Machine
The Sliding Table Panel Saw Machine From Aarati Industries Is Expertly Designed To Provide Smooth, Precise Cutting Of Wood Panels Such As Plywood, MDF, Particleboard, And Laminates. Its Sliding Table Mechanism Allows For Easy Handling Of Large Panels, Improving Cutting Accuracy And Reducing Operator Fatigue.Ideal For Woodworking Shops And Industrial Manufacturers, This Machine Combines Durable Construction With User-friendly Features To Deliver Reliable Performance And Professional-quality Res... Read moreCNC Sliding Panel Saw Machine Manufacturers In Visakhapatnam
By Utilizing Modern Machines And The Newest Equipment, We Are Engaged In Manufacturing And Supplying An Exclusive Range Of CNC Sliding Panel Saw Machine In Visakhapatnam, Andhra Pradesh. The Entire Range Of CNC Sliding Panel Saw Machine Is Manufactured By Our Skilled And Industrious Professionals Who Have Vast Expertise In Their Respective Fields, With The Assistance Of Top-grade Raw Material And The Latest Methods To Promise Better Quality. Customers Can Avail Of This Range Of CNC Sliding Panel Continue
CNC Sliding Panel Saw Machine Manufacturers In Loni
Discover Unmatched Precision And Efficiency With Our CNC Sliding Panel Saw Machines, Manufactured And Supplied In Loni. Designed For High-speed, Accurate Cutting Of Wood Panels, These Machines Offer Automated Control Systems, Smooth Sliding Mechanisms, And Sturdy Construction. As A Leading Manufacturer And Supplier In Loni, We Cater To Furniture Industries And Carpentry Workshops With Machines That Boost Productivity While Maintaining Quality. Our CNC Saws Support Intricate Panel Cutting With Ea Continue
CNC Sliding Panel Saw Machine Manufacturers In Jhansi
We Are A Trusted Manufacturer And Supplier Of CNC Sliding Panel Saw Machines Right Here In Jhansi. Our Cutting-edge Solutions Are Designed Specifically For The Woodworking Industry. With Our CNC Panel Saws, You Can Expect High-speed, Computer-controlled Cutting That Delivers Precision For Materials Like MDF, Particle Boards, Plywood, And Laminated Sheets. Equipped With Robust Motors, User-friendly Digital Control Panels, And Smooth Sliding Tables, Our Machines Are Built For Accuracy, Consistency Continue
