Single Head Hinge Boring Machine Manufacturer In Ujjain
Details of Single Head Hinge Boring Machine

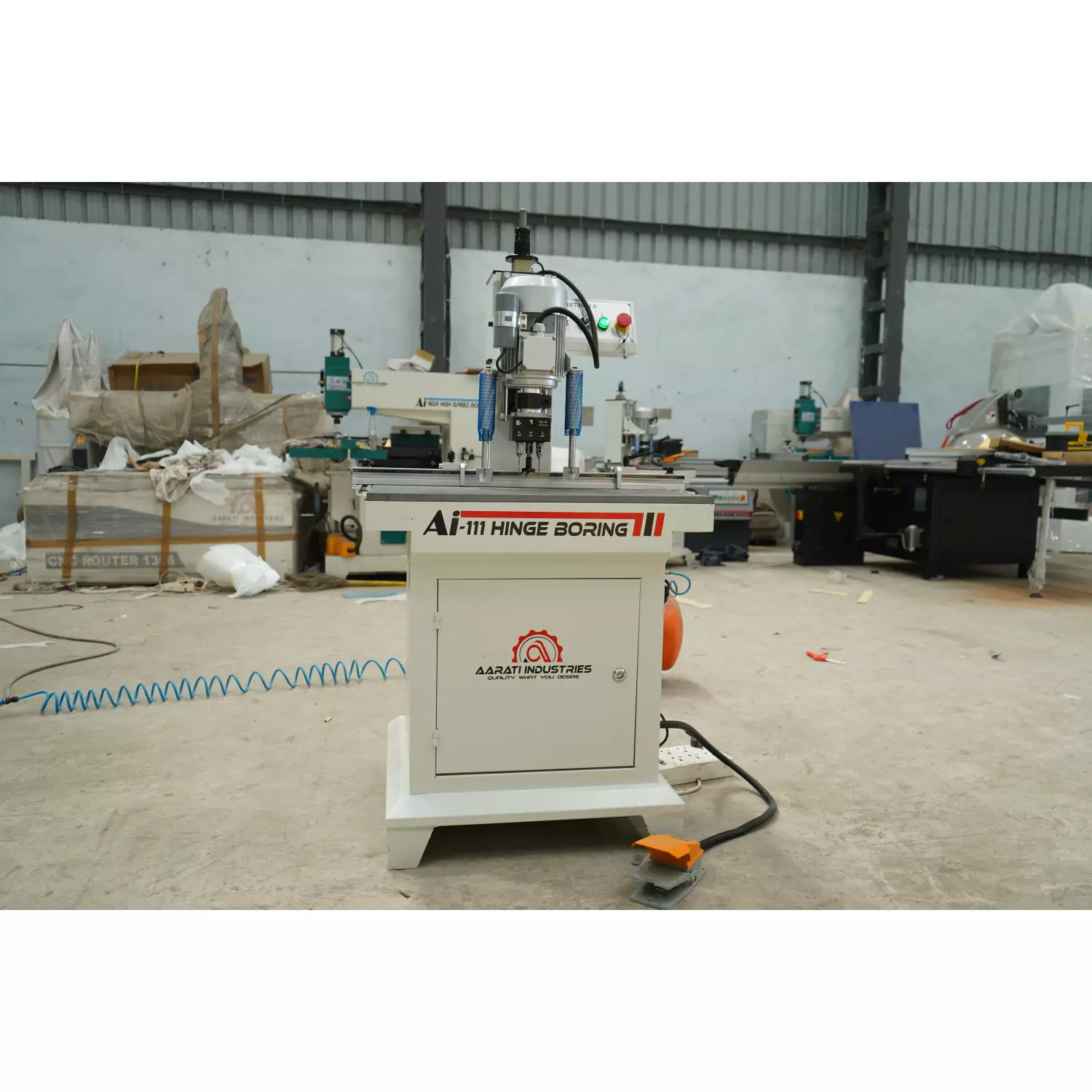

Hinge Boring Machine
Efficient, Precise, and Built for Modular Furniture Model: AI-111 | Brand: Aarati Industries | Made in India
🔷 Product Description:
The AI-111 Hinge Boring Machine from Aarati Industries is a compact and powerful machine designed for accurate and fast boring of hinge holes in cabinet doors, wardrobes, kitchen shutters, and other modular furniture components.
Perfect for carpentry workshops, modular furniture manufacturers, and interior designers, this machine simplifies hinge installation with consistent precision and repeatability.
✅ Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | AI-111 |
| Max. Drilling Diameter | 35 mm (Standard Hinge Hole Size) |
| Max. Drilling Depth | 50 mm |
| Number of Drill Heads | 3 Spindles (1 Center, 2 Side Holes) |
| Drill Head Distance | Adjustable (for hinge cup + dowel) |
| Spindle Speed | 2800 RPM |
| Motor Power | 1.5 kW |
| Working Pressure | 0.6 – 0.8 MPa (Air Pressure) |
| Control System | Manual Push Button / Semi-Auto |
| Table Type | Pneumatic Clamping |
| Machine Size | 900 × 700 × 1600 mm |
| Weight | Approx. 250 KG |
| Power Supply | 230V / 50Hz / Single Phase |
💡 Key Features:
✔️ 3-Spindle Design – For hinge cup + side hole drilling ✔️ Pneumatic Clamping System – Fast, secure job holding ✔️ High Precision – Perfect alignment for hinge installation ✔️ Sturdy Structure – Designed for long-term industrial use ✔️ Compact & Space-Saving – Ideal for small workshops
Offered Product
Single Head Hinge Boring Machine
The Single Head Hinge Boring Machine Is Specifically Designed For Precise And Efficient Drilling Of Hinge Holes In Cabinet Doors, Wardrobes, And Furniture Panels. Ideal For Small To Mid-scale Production Units, This Machine Ensures Accurate Alignment And Depth Control, Making Hinge Installation Quick And Hassle-free.AI -111 HING BORING MAX DRILLING DIAMETE -35MMMAX DRILLING DEPETH - 50MM MAX PROCESSING LENGTH 1000M DRILL SPINDLE NUMBER -3*1OVERALL DIMENSIONS 1100*700*15... Read moreSingle Head Hinge Boring Machine Manufacturers In Bhiwandi
With The Hold Of Our Accomplished And Well-qualified Specialists, We're Able To Provide A High-quality Array Of Single Head Hinge Boring Machine In Bhiwandi, Maharashtra. Designed With Extreme Precision, The Offered Single Head Hinge Boring Machine Is Manufactured Using Quality-experienced Raw Material With The Assistance Of Avant-garde Technology In Tandem With Set Industry Standards. Additionally, Our Quality Inspector Strictly Tests The Stock Of Single Head Hinge Boring Machine To Deliver An Continue
Single Head Hinge Boring Machine Manufacturers In Tiruvallur
We Are Known Among The Popular Names Of The Industry For Our Exclusive Range Of Single Head Hinge Boring Machine In Tiruvallur. This Machine Is Precisely Manufactured By Utilizing Superior Quality Raw Materials And Pioneering Techniques Under The Strict Supervision Of Our Diligent Professionals. They Are High In Quality And Meet The Client’s Requirements In Every Aspect Of Performance And Durability. Our Valuable Customers Can Buy This Single Head Hinge Boring Machine From Us At Nominal Pr Continue
Single Head Hinge Boring Machine Manufacturers In Ludhiana
We Are One Of The Prominent Manufacturers And Suppliers Of High-performance Single Head Hinge Boring Machines In Ludhiana. Fabricated Using Premium-grade Components And Modern Engineering Techniques, This Machine Is Ideal For Accurate Hinge-boring Applications In Modular Furniture And Cabinet Production. It Is Appreciated For Its Operational Reliability, Precision Drilling, Sturdy Design, And Smooth Functioning. Available In Different Configurations To Meet Customer Requirements, This Single Hea Continue
