Membrane Vacuum Pressing Machine Manufacturer In Guntur
Details of Membrane Vacuum Pressing Machine

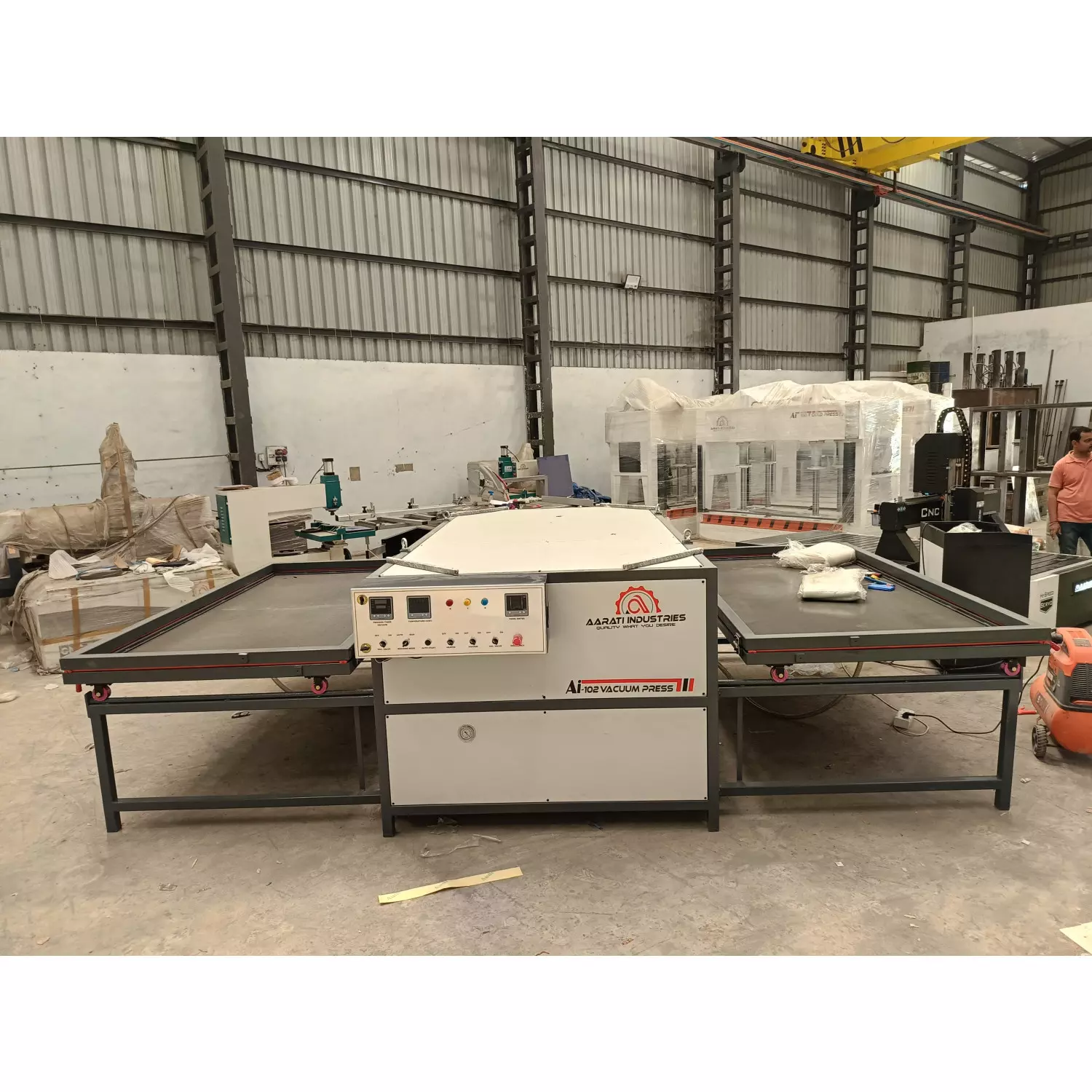

Membrane Vacuum Press – Double Trolley
Manufacturer: Aarti Industries, Ahmedabad, India Usage: Ideal for applying PVC décor films, veneer, and membrane wraps on doors, panels, curved edgebands and furniture components.
📐 Key Technical Specifications
Working Tables: 2 independent trolleys for continuous loading & unloading
Table Size: ~2500 × 1250 mm (98″ × 49″) each
Max Substrate Thickness: Up to 50 mm
Vacuum Level: ~–0.10 MPa for even pressure distribution
Power Supply: 380 V / 3‑phase; total electric load ~12 HP (9 kW)
Heating System: Stainless-steel heating elements integrated within press plate
Construction: Heavy-duty MS frame with double-layer thermal insulation
Automation: Fully automatic operation with PLC/digital controls and MCB safety cut-offs
Cycle Time: Typically 3–5 minutes depending on material and thickness
⚙️ Key Features & Benefits
Dual Trolley System: Enables uninterrupted workflow—while one panel is pressing, the other is being loaded or unloaded.
Uniform Pressure & Temperature: The vacuum membrane ensures wrinkle-free adhesion across flat to deeply profiled surfaces.
Robust Build & Insulation: Heavy steel worktables and thermal preservation guarantee energy efficiency and stable press conditions.
Easy Handling: Semi-automatic trolleys reduce operator effort; PLC-based controls streamline operation.
Safety First: Automatic vacuum cut-out with MCB ensures electrical protection and safe operation.
✅ Applications
PVC or veneer lamination on MDF/particle board doors and panels
Decorative foil wrapping on curved profiles and furniture components
High-throughput production for modular kitchen, wardrobe, and door manufacturing
Offered Product
Membrane Vacuum Pressing Machine
The Membrane Vacuum Pressing Machine By Aarati Industries Is Expertly Engineered To Provide Superior Membrane Pressing Capabilities, Perfect For Applying Decorative Films And Laminates On Curved And Complex Wooden Surfaces. This Machine Uses Advanced Vacuum Technology To Ensure Even Adhesion Of Membrane Sheets, Creating Smooth, Wrinkle-free, And High-quality Finishes Ideal For Modern Furniture And Interior Decor.Featuring A Robust Construction, An Efficient Vacuum System, And Precise Temperatu... Read moreMembrane Vacuum Pressing Machine Manufacturer In Bhiwandi
🖼️ Vacuum Membrane Press – Double Trolley | Aarati IndustriesHigh Productivity Meets Flawless Finishing The Double Trolley Vacuum Membrane Press From Aarati Industries Is Engineered For Large-scale Production Of 3D Lamination Jobs. This Machine Enables Uniform Pressing Of PVC, Veneer, And Decorative Foils Over MDF, HDF, Or Wood Surfaces—perfect For Shutters, Doors, Panels, And Custom Furniture. The Dual Trolley System Maximizes Output By Reducing Cycle Downtime.🔧 Technica Continue
Membrane Vacuum Pressing Machine Manufacturer In Jabalpur
Vacuum Membrane Press MachineManufactured By Aarati Industries – Engineered For ExcellenceProduct Overview: The Vacuum Membrane Press Machine From Aarati Industries Is Designed For High-efficiency Lamination On A Variety Of Substrates, Including MDF, HDF, Flush Doors, PVC Foam Boards, And More. Ideal For Furniture And Interior Applications Like Kitchen Shutters And Wooden Doors, This Machine Ensures Premium Finish, Speed, And Durability.Technical Specifications:Applications: Suitab Continue
Membrane Vacuum Pressing Machine Manufacturer In Thiruvananthapuram
🛠️ Double-Trolley Membrane Vacuum Press MachineBy Aarati Industries – Precision Engineered For PerformanceMore Output. Less Downtime. Perfect Finishing. Take Your Lamination Process To The Next Level With Aarati Industries’ Double-Trolley Membrane Vacuum Press Machine – Designed For High-volume PVC Membrane Pressing, Flawless Veneer Finishes, And Continuous Production Efficiency.🔧 Technical SpecificationsParameterSpecificationModelDouble-Trol Continue
