Membrane Vacuum Pressing Machine Manufacturer In Bhiwandi
Details of Membrane Vacuum Pressing Machine

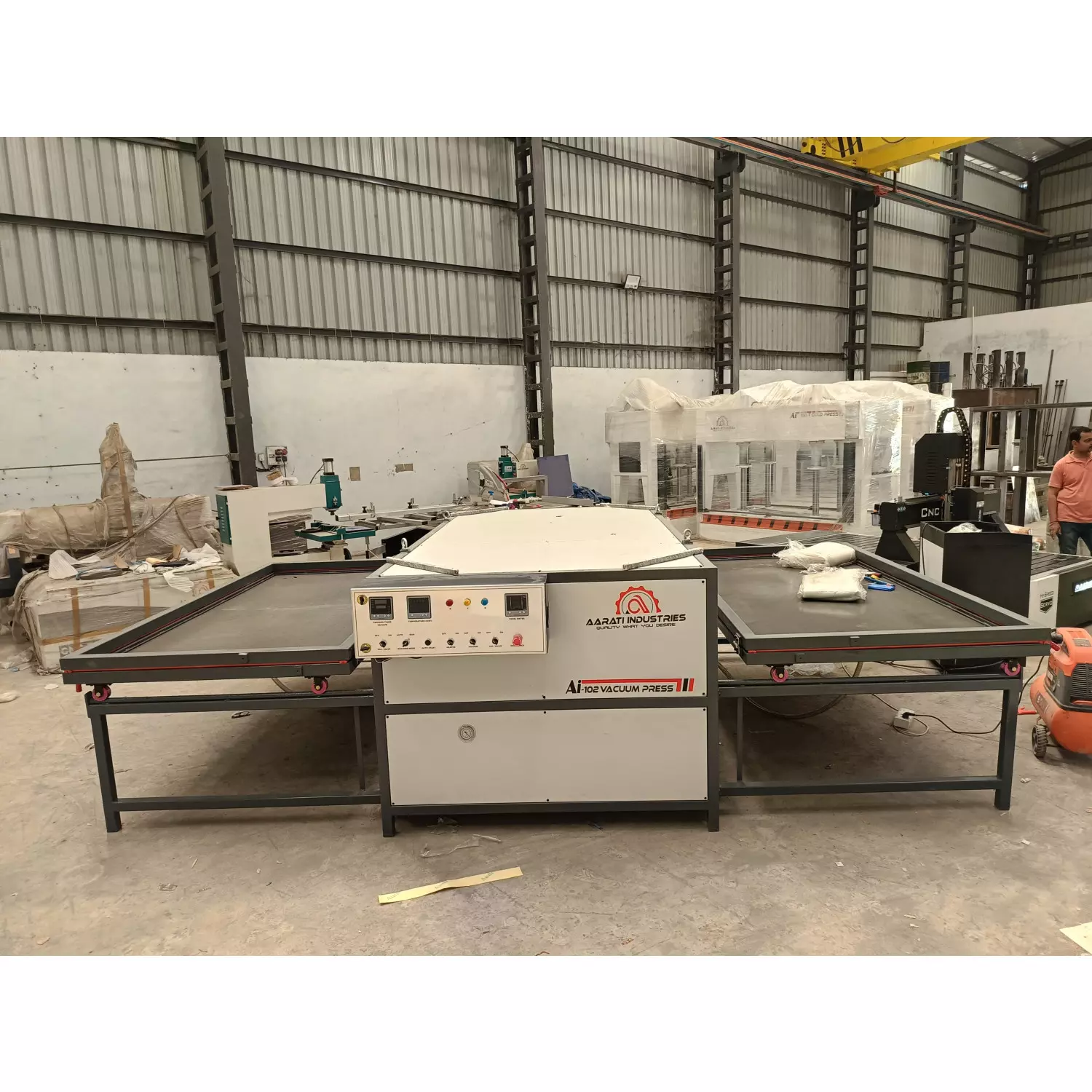

🖼️ Vacuum Membrane Press – Double Trolley | Aarati Industries
High Productivity Meets Flawless Finishing The Double Trolley Vacuum Membrane Press from Aarati Industries is engineered for large-scale production of 3D lamination jobs. This machine enables uniform pressing of PVC, veneer, and decorative foils over MDF, HDF, or wood surfaces—perfect for shutters, doors, panels, and custom furniture. The dual trolley system maximizes output by reducing cycle downtime.
🔧 Technical Specifications:
| Feature | Specification |
|---|---|
| Model | Double Trolley Vacuum Membrane Press |
| Working Table Size | 2500 × 1300 mm (customizable) |
| No. of Trolleys | 2 (interchangeable – for continuous loading) |
| Heating System | Infrared ceramic heaters |
| Heating Zone | Even temperature distribution across chamber |
| Vacuum Pump Capacity | 100 m³/h to 200 m³/h (as per model) |
| Max. Sheet Thickness | Up to 50 mm (can vary by material) |
| Cycle Time | 3–5 minutes (standard PVC lamination) |
| Control Panel | Digital / PLC-based with touch screen (optional) |
| Power Requirement | 3 Phase, 380–415 V, 50 Hz |
| Frame Construction | Heavy-duty MS, powder-coated finish |
| Overall Dimensions | ~3500 × 1500 × 1800 mm (varies by model) |
| Net Weight | Approx. 1000–1200 kg |
✅ Key Features:
🧲 Double Trolley System – Enables quick job swapping for high-volume output
🔥 Uniform Heating – Ceramic infrared heaters ensure wrinkle-free finish
🧽 Strong Vacuum – Powerful suction for consistent edge-to-edge adhesion
🛠️ Durable Build – Made with industrial-grade mild steel frame
🎛️ Easy Controls – Temperature, timer, and vacuum control via user-friendly interface
🌱 Energy Efficient – Optimized for low heat loss and faster cycles
Offered Product
Membrane Vacuum Pressing Machine
The Membrane Vacuum Pressing Machine By Aarati Industries Is Expertly Engineered To Provide Superior Membrane Pressing Capabilities, Perfect For Applying Decorative Films And Laminates On Curved And Complex Wooden Surfaces. This Machine Uses Advanced Vacuum Technology To Ensure Even Adhesion Of Membrane Sheets, Creating Smooth, Wrinkle-free, And High-quality Finishes Ideal For Modern Furniture And Interior Decor.Featuring A Robust Construction, An Efficient Vacuum System, And Precise Temperatu... Read moreMembrane Vacuum Pressing Machine Manufacturer In Pratapgarh
Vacuum Membrane Press MachineDesigned & Delivered By Aarati Industries High Performance | Seamless Lamination | Dual Trolley🛠️ Technical SpecificationsFeatureSpecificationApplicationMDF, HDF, Flush Door, Plywood, PVC Foam BoardAdditional UsesWooden Doors, Kitchen Shutters, Flour Mill ShuttersWorking Table TypeDouble Trolley SystemTable Size1250 Mm × 2440 Mm (48” × 96”)Maximum Load Capacity10 KW / 13 HP Continue
Membrane Vacuum Pressing Machine Manufacturer In Jodhpur
Vacuum Membrane Press MachineBy Aarati Industries — Precision | Performance | Perfection ✅ Product OverviewIntroducing The Vacuum Membrane Press Machine From Aarati Industries, Engineered To Deliver Unmatched Lamination Precision For A Wide Range Of Substrates. Designed For Medium To Heavy-duty Industrial Applications, This Machine Is Your Go-to Solution For Producing High-quality 3D Laminates On MDF, HDF, PVC Foam Boards, And More.Our Double-trolley Membrane Press Is The Ideal Mac Continue
Membrane Vacuum Pressing Machine Manufacturer In Jabalpur
Vacuum Membrane Press MachineManufactured By Aarati Industries – Engineered For ExcellenceProduct Overview: The Vacuum Membrane Press Machine From Aarati Industries Is Designed For High-efficiency Lamination On A Variety Of Substrates, Including MDF, HDF, Flush Doors, PVC Foam Boards, And More. Ideal For Furniture And Interior Applications Like Kitchen Shutters And Wooden Doors, This Machine Ensures Premium Finish, Speed, And Durability.Technical Specifications:Applications: Suitab Continue
