Hydraulic Hot Press Machine Manufacturer In Nagaur
Details of Hydraulic Hot Press Machine

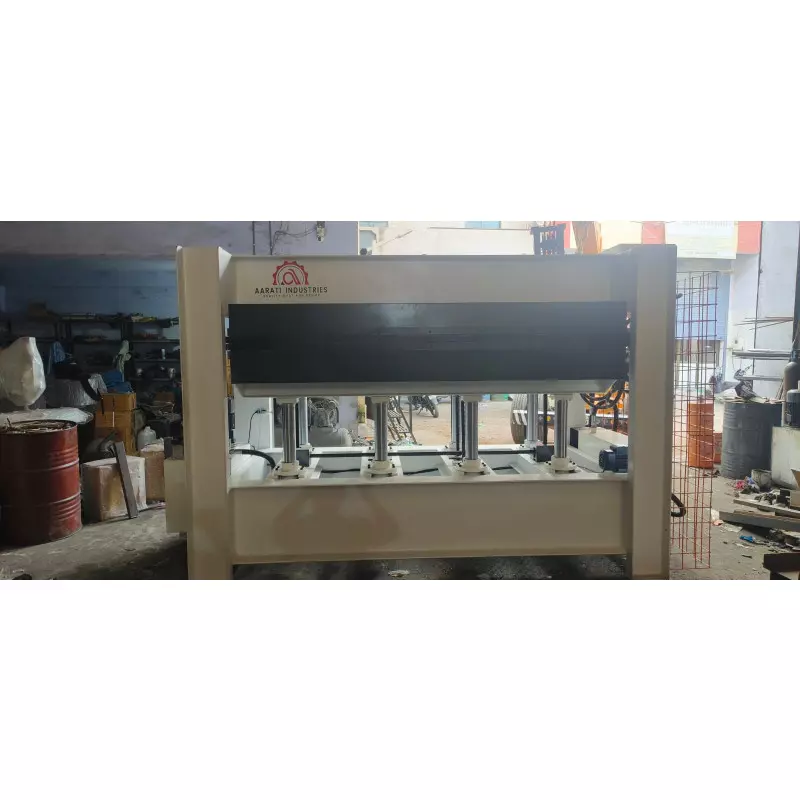

Hydraulic Hot Press Machine (Thermic Oil Based)
Engineered by Aarati Industries – Power Meets Precision ✅ Product Description
At Aarati Industries, we manufacture high-performance Hydraulic Hot Press Machines for laminating plywood, flush doors, MDF, HDF, and composite materials. Built with state-of-the-art technology and premium-grade components, our machines ensure uniform heating, consistent pressure, and maximum productivity — all while minimizing energy consumption and maintenance overheads.
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Minimum Load on Workpiece | 150 Ton |
| Platen Size | 3050 mm × 1300 mm × 42 mm |
| Number of Daylight Plates | 4 Plates (3-Daylight / 3 Layer) |
| Maximum Opening of Press | 100 mm per layer |
| Number of Hydraulic Cylinders | 8 Nos |
| Cylinder Dimensions | 125 mm Bore × 150 mm Stroke × 90 mm Rod Diameter |
| Hydraulic Power Pack | 5 HP Dual Vane Pump (Heavy Duty) |
| Thermic Oil Motor Unit | 2 HP Pedrollo Motor (Imported – Made in Italy) |
| Heating Medium | Thermic Oil Circulation |
| Total Power Rating | 27 kW |
| Structure Frame | Rigid MS Fabricated Frame with Vibration-Free Operation |
| Control System | Semi-Automatic / PLC Controlled Panel (Optional) |
| Temperature Range | Up to 180°C (adjustable as per application) |
| Safety Features | Overload Protection, Emergency Stop, Oil Temperature Control |
| Operation Cycle Time | Adjustable based on material & temperature (Typically 4–7 mins) |
Offered Product
Hydraulic Hot Press Machine
The Hydraulic Hot Press Machine From Aarti Industries Is Engineered To Deliver Consistent, High-pressure Pressing Combined With Precise Temperature Control, Making It Ideal For Manufacturing Plywood, Laminates, Veneers, MDF, And Other Composite Wood Panels. Its Advanced Hydraulic System Ensures Smooth, Uniform Pressure Application, While The Heated Platens Provide Even Temperature Distribution For Optimal Bonding.This Machine Is Designed For Heavy-duty Industrial Use, Offering Excellent Reliab... Read moreHydraulic Hot Press Machine Manufacturer In Avadi
Known For Advanced Industrial Solutions, Aarati Industries Offers Hydraulic Hot Press Machines In Avadi As A Leading Manufacturer And Supplier. Our Machines Are Designed For Laminating, Molding, And Bonding Applications With Precision And Consistent Pressure. Built With Durable Hydraulic Systems And Safety Features, They Ensure Smooth Operation And High-quality Output. Suitable For Woodworking, Furniture, And Industrial Production, These Hot Press Machines Provide Efficiency And Long Service Lif Continue
Hydraulic Hot Press Machine Manufacturer In Gaya
We Are Leading Suppliers Of Hydraulic Hot Press Machines In Gaya, Designed For Plywood Lamination, Decorative Sheet Pressing, And Industrial Panel Applications. These Machines Deliver Uniform Pressure And Heat Distribution, Ensuring Superior Bonding And Flawless Finishing. With Robust Design, User-friendly Controls, And Long Service Life, Our Hot Press Machines Guarantee Consistent Output Even In Heavy-duty Operations. They Are Widely Used In Plywood Factories, Furniture Manufacturing, And Indus Continue
Hydraulic Hot Press Machine Manufacturers In Indore
Indore, A Thriving Industrial Hub Located In Madhya Pradesh, Is A Melting Pot For Various Manufacturing Industries, Ranging From Furniture And Woodworking To Automotive Components And Composite Materials. In This Dynamic Atmosphere, Hydraulic Hot Press Machines Are Indispensable, Offering Unmatched Precision, Efficiency, And Versatility That Are Vital For Numerous Industrial Applications. Continue
