Manufactured by: Aarati Industries Engineered for High-Pressure Mica Lamination & Board Pressing Applications
✅ Technical Specifications
Machine Type: Cold Press (Hydraulic Type)
Pressing Capacity: 50 Ton
Platen Size (L×W): 2500mm × 1300mm (Customizable as per order)
Daylight Opening (Working Height): 400mm – 500mm (Optional range)
No. of Cylinders: 2 Heavy-Duty Hydraulic Cylinders
Cylinder Bore Size: Ø160mm to Ø200mm (Depending on design)
Working Pressure: Up to 250 bar
Hydraulic System: • Power Pack Unit with Pressure Gauge • High-Quality Hydraulic Hoses & Seals
Main Motor: 3 HP / 5 HP (3 Phase, 1440 RPM) (Brand: Crompton / ABB / Equivalent)
Pressing Time: Adjustable Timer – 0 to 99 sec/min
Control Panel: • User-Friendly Panel with Push Buttons • Auto & Manual Modes • Emergency Stop Switch
Structure: • Heavy-Duty MS Fabricated Frame • Stress-Relieved Welded Construction
Surface Finish: Industrial Powder Coated / Enamel Painted
Electricals: L&T / Schneider / Siemens / Mitsubishi
Power Supply: 3 Phase | 415V | 50Hz
Machine Size (L×W×H): Approx. 3000mm × 1600mm × 2200mm
Machine Weight: Approx. 2800 KG – 3200 KG

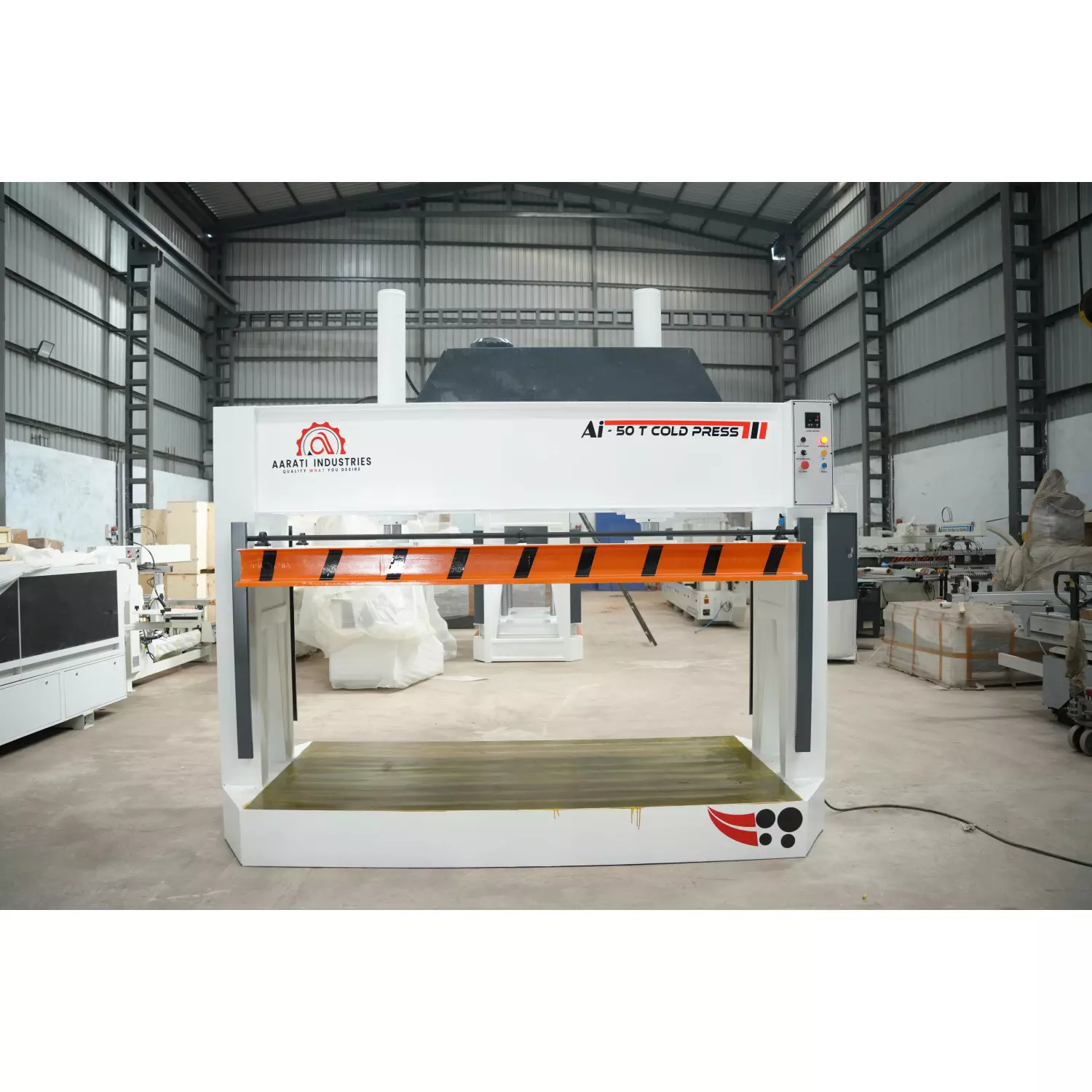

🌟 50 Ton Wood Lamination Pressing Machine – Aarati IndustriesUpgrade Your Woodworking Efficiency With The 50 Ton Hydraulic Cold Press Machine By Aarati Industries — Built For Precision, Power, And Durability. Ideal For Laminating Plywood, MDF, Flush Doors, And Sunmica Sheets, This Machine Ensures Uniform Pressure Distribution For Perfect Bonding Every Time.🔧 Key Features:Pressing Capacity: 50 TonsPlaten Size: 2530 X 1300 Mm (8’ X 4’)Cylinder Stroke: 1000 M Continue
