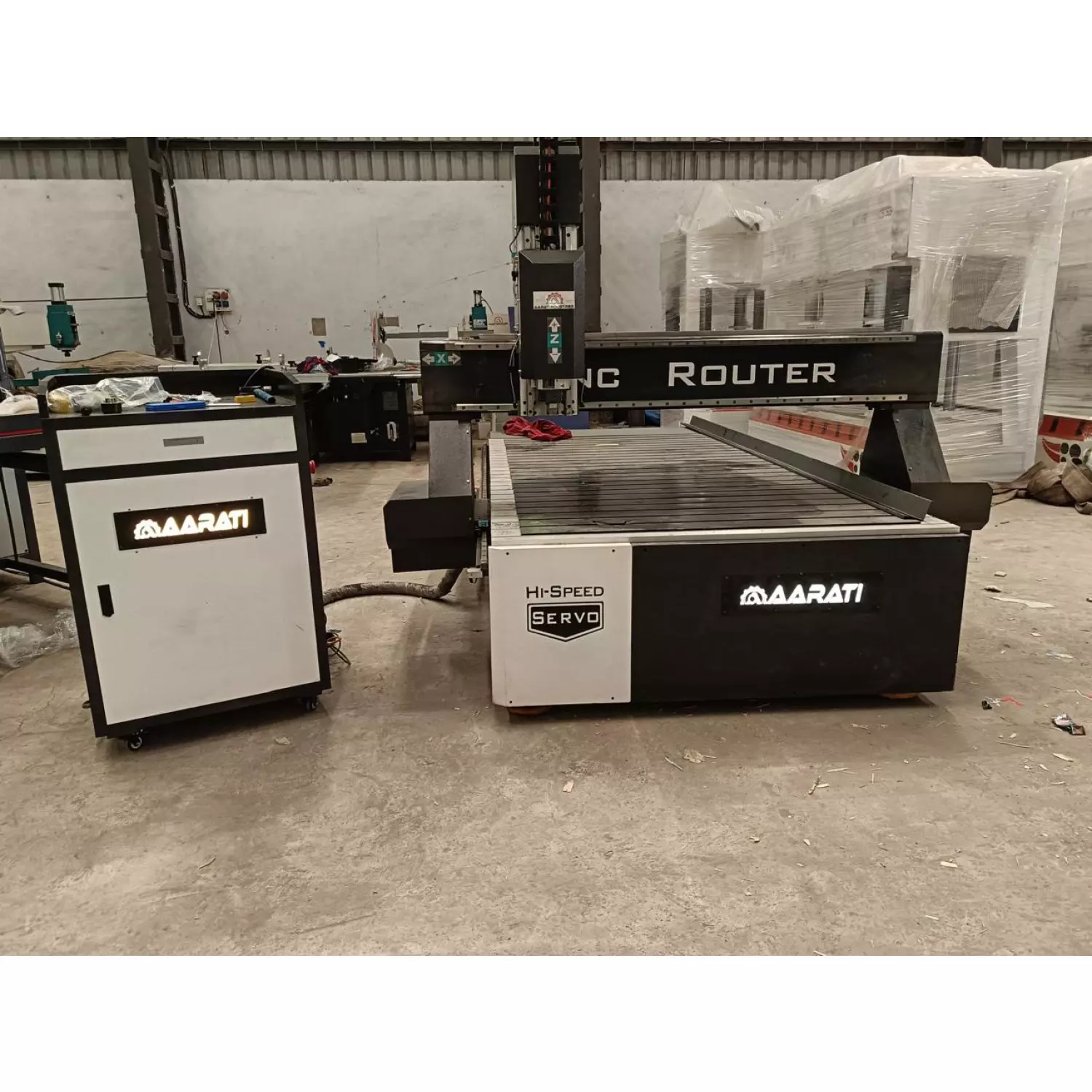

CNC Router Wood Engraving Machine Manufacturer Raipur
Details of CNC Router Wood Engraving Machine
6 kW Easy Servo CNC Router Machine (Imported)
Model: 8x4 Air Cooled Powered & Supplied by Aarati Industries
? Built for Precision. Designed for Performance.
Introducing our advanced 6 kW CNC Router Machine, engineered for high-speed and precision cutting of wood, MDF, acrylic, ACP, Corian, and more. Featuring a powerful air-cooled spindle, Leadshine servo drives, and HIWIN motion components, this machine is ideal for industries that demand both reliability and efficiency.
? Machine Specifications:
Model: CNC Router 8x4 (Air Cooled)
Axis Travel:
X = 1300 mm
Y = 2500 mm
Z = 300 mm
Axis Motion System:
X & Y = Helical Rack & Pinion (25x25 mm)
Z = Ball Screw 20x10 mm (Brand: HIWIN)
Axis Drive & Motors:
Servo Motors with Planetary Gearbox (Brand: Leadshine)
Axis Sliding System:
20 mm LM Guide & Block (Brand: HIWIN)
Spindle Power: 6 kW (Air Cooled)
Spindle Speed: 18,000 RPM
Spindle Brand: HQD
Spindle Drive: FRECON
Collet Size: ER32 (Max Tool Diameter: 20 mm)
Controller: REACH AUTO
Work Speed: 15,000 mm/min
Idle Speed: 15,000 mm/min
Offered Product
CNC Router Wood Engraving Machine
The CNC Router Wood Engraving Machine Is A State-of-the-art, Computer-controlled Machine Designed Specifically For Intricate Wood Carving, Engraving, And Detailed Shaping. Ideal For Artisans, Furniture Makers, And Manufacturers, This Machine Combines Precision, Speed, And Versatility To Bring Detailed Wood Designs And Patterns To Life With Unmatched Accuracy.Equipped With Advanced CNC Technology And Robust Mechanical Components, The Machine Easily Handles Various Wood Types, Including Hardwood... Read moreCNC Acrylic Router Machine Supplier In Dhanbad
When Your Existing CNC Acrylic Router Machine In Dhanbad Becomes A Liability, Turning To Our Dependable Machines Can Help You Regain Control And Stability. We Offer Reliable Options That Fit Well Into Busy Workshops Facing Production Challenges.Meeting Industry StandardsThe Machines We Supply Comply With Common Safety And Quality Standards Important In Woodworking And Plastic Fabrication. Their Build Matches Technical Benchmarks For Accuracy And Power Use, Which Helps Cut Down Waste And Downtime Continue
CNC Acrylic Router Machine Manufacturer In Tripura
Make Your Business Stand Out With Our Premium CNC Acrylic Router Machine Designed To Deliver Precise Cuts And Smooth Finishes, Built To Last For Heavy Use. This Machine Handles Complex Designs On Acrylic Sheets With High Accuracy, Cutting Down Waste And Rework.Durability Matters. We Build These Routers With Tough Components That Withstand Constant Operation In Demanding Workshops. The Spindle Speed And Motor Power Offer Flexibility For Different Thicknesses And Patterns On Acrylic Materials, Whi Continue

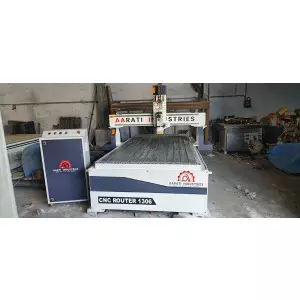

CNC Router Wood Engraving Machine Manufacturer In Nagaur
6 KW Pure Servo CNC Router Machine (8x4 | Indian Made)Brand: Aarati Industries – Engineered For Precision & Performance? Machine OverviewThis 8x4 CNC Router From Aarati Industries Is A Robust, Indian-made Machine Designed For Fast, Accurate, And Efficient Processing Of Wood, MDF, Acrylic, PVC, Corian, And More. Built With A Strong Structure, Top-tier Components, And A Fully Servo-driven System, This Machine Delivers Reliable Industrial Performance.? Technical Specifications Continue
