Imported Model | Built for Precision | Powered by Aarati Industries
Technical Specifications
Feature | Specification |
---|---|
Model No. | 8x4 Air Cooled (Imported) |
Axis Travel | X: 1300 mm, Y: 2500 mm, Z: 300 mm |
Motion System | X & Y: 25x25mm Helical Rack & PinionZ: 20x10mm Ball Screw (HIWIN) |
Motor & Drive | Leadshine Servo Motors with Planetary Gearbox (X, Y, Z Axis) |
Speed | Working & Idle Speed: 15,000 mm/min |
Guide System | 20mm Linear Motion Guide & Block (HIWIN) |
Spindle Motor | 6kW Air-Cooled HQD SpindleCollet: ER32Max Tool Size: 20mm |
Spindle Drive | FRECON Inverter Drive |
Cooling System | Air-Cooled |
Machine Controller | REACH AUTO |
Structure | Mild Steel Heavy-Duty Fabrication |
Cables | IGUS & LAPP (German Quality) |
Electricals | Schneider / L&T / Mitsubishi |
Power Supply | 3-Phase, 420V, 50Hz |
Lubrication System | Manual Lubrication Oil Pump |
Machine Weight | Approx. 1000 kg |
Machine Dimensions | 10 x 7 x 6 ft |
Table Clamping | Manual Clamping with Stainless Steel Tray |

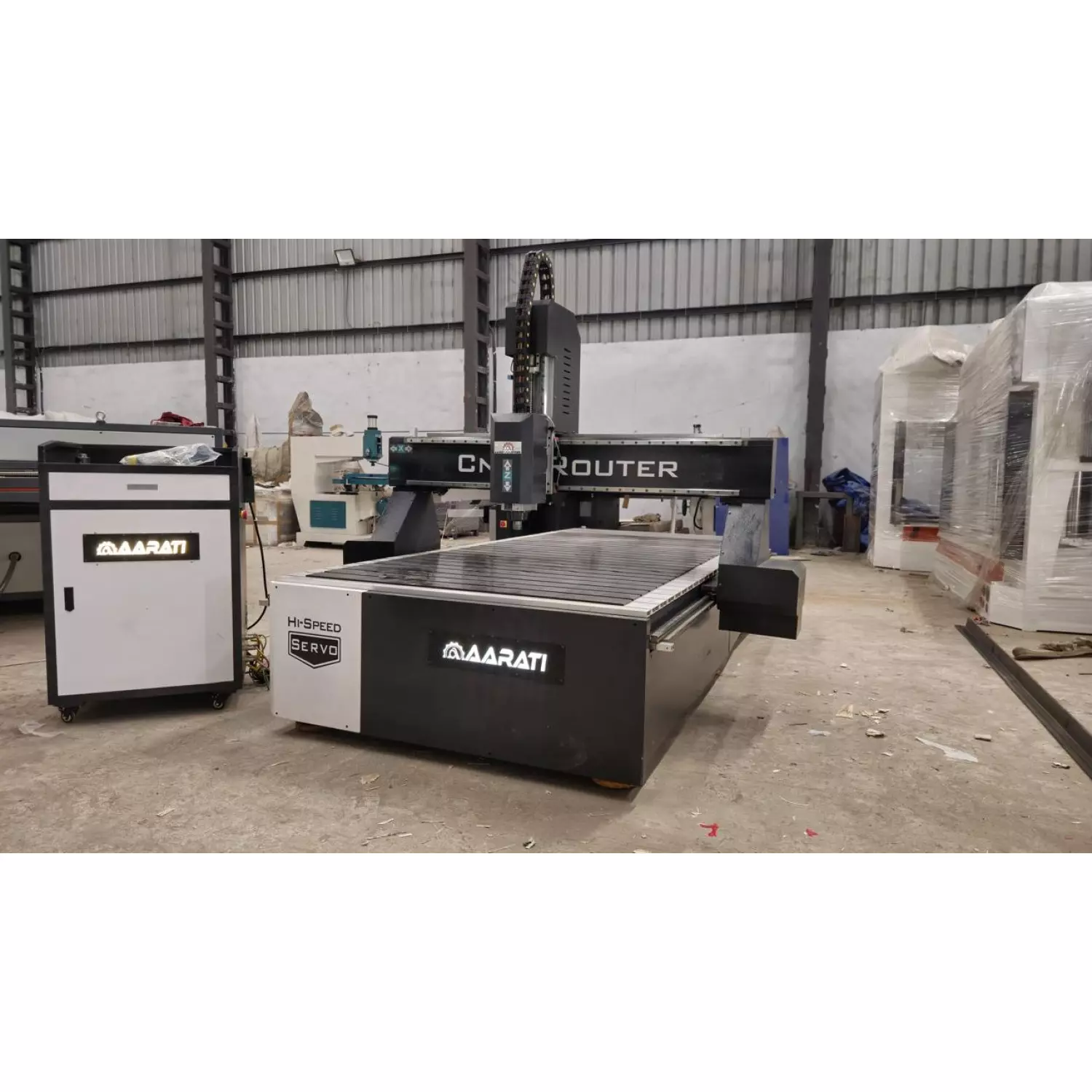

CNC Router Machine With 6.0kW Air-Cooled SpindlePrecision. Power. Performance. — By Aarati IndustriesUnleash Industrial-grade Cutting Power With The CNC Router Machine From Aarati Industries, Featuring A 6.0kW Air-cooled Spindle Capable Of Running At 18,000 RPM, Combined With High-performance Easy Servo Motors For Accurate, High-speed Machining. Ideal For Woodworking, Sign Making, Furniture Design, And Panel Processing, This Machine Delivers Productivity, Consistency, And Long-lasting Continue
🔧 CNC Acrylic Router Machine – 6 kW Air-Cooled SpindlePowered By Aarati Industries – Precision Meets Performance📐 Technical SpecificationsFeatureDetailsWorking Area (X×Y×Z)1300 × 3100 × 200 mmSpindle Power6 kW (HQD Brand)Spindle SpeedUp To 18,000 RPMCooling TypeAir-Cooled (no Chiller Required)Collet SizeER32 (up To 20 mm Tool Shank)Motor & DriveLeadshine Easy Servo Drives On Continue
We Are Manufacturing And Supplying The Best Quality Range Of CNC Acrylic Router Machine In Kolkata, West Bengal. This CNC Acrylic Router Machine Is Designed And Manufactured Using The Best Quality Raw Material And Current Technology At Our Well-established Manufacturing Unit. Moreover, The Entire Range Of CNC Acrylic Router Machine Undergoes Severe Testing By Our Quality Experts To Ensure Its Flawless Nature, Offering High Precision, Smooth Finishes, And Robust Performance For All Your Acrylic F Continue
