Automatic CNC Wood Router Machine With Vacuum Bed Manufacturer In Hanumangarh
Details of Automatic CNC Wood Router Machine With Vacuum Bed

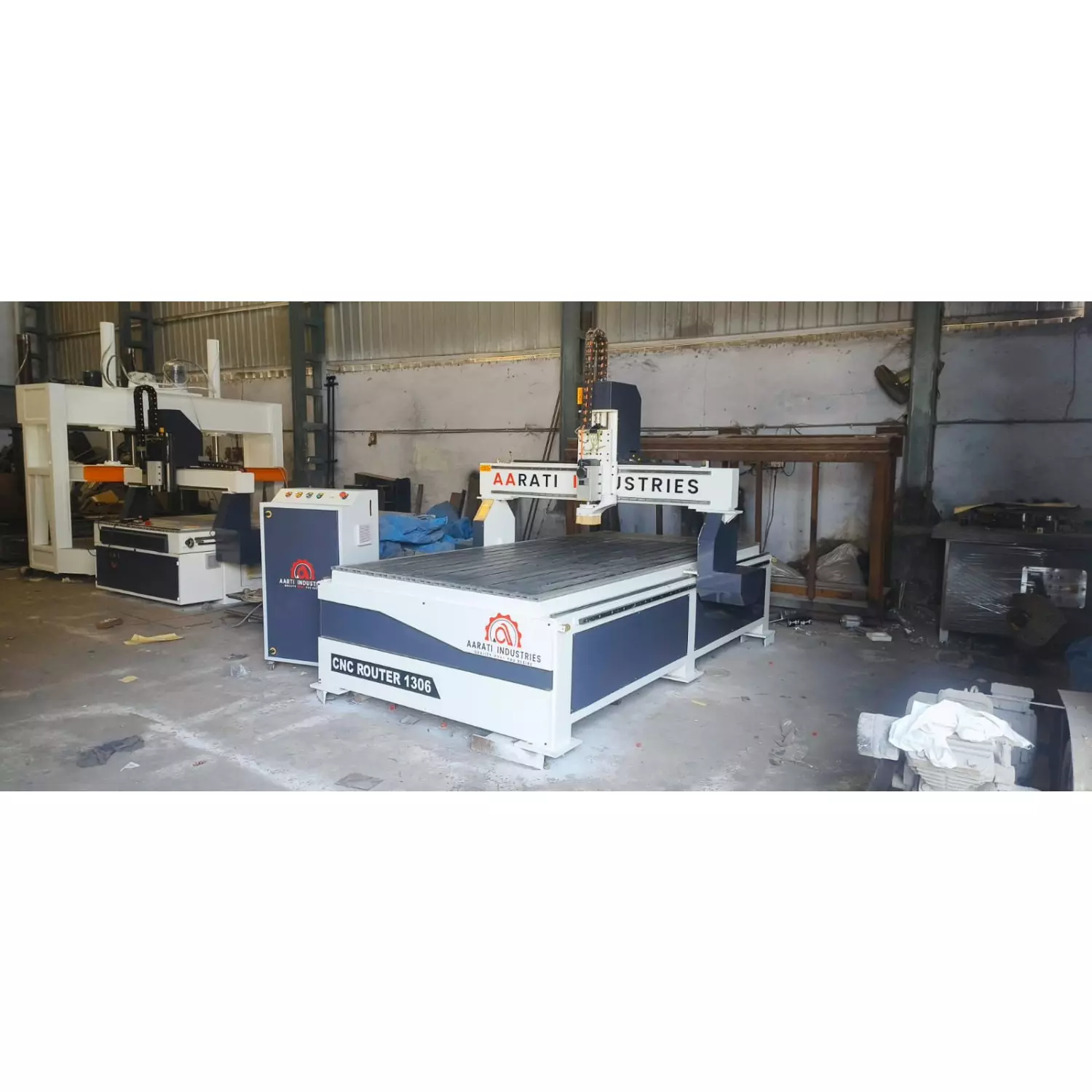

Automatic CNC Wood Router Machine with Vacuum Bed
Aarati Industries is a fully automatic CNC wood router designed for high-precision engraving, cutting, and shaping of wood and wood-based materials. Equipped with a heavy-duty vacuum bed and high-speed spindle, this model is ideal for furniture manufacturing, sign-making, interior décor, and custom woodworking applications.
🔧 Technical Specifications:
Working Area: 1300 mm × 2500 mm × 200 mm (Custom sizes available)
Table Type: Vacuum Bed with T-slot clamps
Spindle Power: 3.5 kW / 4.5 kW / 6 kW (Optional upgrades available)
Spindle Speed: 6,000 – 24,000 RPM
Drive System: X/Y axis – Rack and pinion; Z axis – Ball screw
Motor Type: Stepper / Servo Motor (based on configuration)
Control System: DSP / Mach3 / Syntec / NC Studio (as per requirement)
Working Voltage: 380V / 415V, 3-phase, 50Hz
Vacuum Pump Power: 5.5 kW (Oil-free or water-cooled options)
Command Format: G-code / HPGL / U00 / mmg / plt
Max Travel Speed: 25,000 mm/min
Max Working Speed: 18,000 mm/min
Tool Change System: Manual / Optional Auto Tool Changer (ATC)
Dust Collection Port: Yes – integrated
Machine Weight: Approx. 1000 – 1300 kg
Frame Structure: Heavy-duty welded steel frame (anti-vibration treated)
Offered Product
Automatic CNC Wood Router Machine With Vacuum Bed
Our Automatic CNC Wood Router Machine With Vacuum Bed Combines Precision Machining With Innovative Vacuum Technology To Provide Superior Stability And Accuracy During Woodworking Operations. Designed For Professional Woodworkers And Manufacturers, This Machine Is Perfect For Complex Cutting, Carving, Engraving, And Shaping Tasks On A Variety Of Wood Materials.The Integrated Vacuum Bed Securely Holds Workpieces In Place Without The Need For Clamps, Enabling Faster Setup And Reducing The Risk Of... Read moreAutomatic CNC Wood Router Machine With Vacuum Bed Machine Manufacturer In Aligarh
Automatic CNC Wood Router Machine With Vacuum BedBrand: Aarati Industries – Ahmedabad, Gujarat Country Of Origin: Made In India Built For Precision. Powered For Performance.Technical SpecificationsSpindle Power: 6.0 KW Air-Cooled Spindle (High-Speed)Motor Type: Easy Servo Motor (Low Noise, High Torque, Energy Efficient)Control System: Advanced CNC Controller For User-friendly OperationTable Type: Industrial-Grade Vacuum Bed For Strong And Stable Material HoldingAutomation Gra Continue
Automatic CNC Wood Router Machine With Vacuum Bed Machine Manufacturer In Jaipur
🛠️ CNC Router Machine – Model No: 8X4 Air-CooledManufactured By Aarati Industries | Ahmedabad, India⚙️ Technical Specifications:FeatureDescriptionModelCNC Router 8X4 – Air CooledAxis TravelX = 1300 mm, Y = 3100 mm, Z = 300 mmRotary Working AreaNot ApplicableMotion SystemX & Y: 25×25 mm Helical Rack & PinionZ: 20×10 mm Ball Screw (Hiwin)Motor & Drive SystemEasy Servo Motors With YAKO T Continue
Automatic CNC Wood Router Machine With Vacuum Bed Manufacturer In Hubli
Automatic CNC Wood Router Machine With Vacuum BedBy Aarati Industries – Engineered For ExcellenceTake Your Woodworking Capabilities To The Next Level With Our Automatic CNC Wood Router Machine, Designed For High-speed, High-precision Operations Across Wood, MDF, Plywood, Acrylic, And More.💼 Ideal For:Modular Furniture ManufacturingSignboard CarvingDecorative Wood PanelingCabinet & Door DesigningInterior & Exterior Architectural Elements🔧 Key Features: ✅ Va Continue
